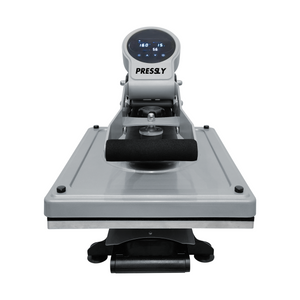

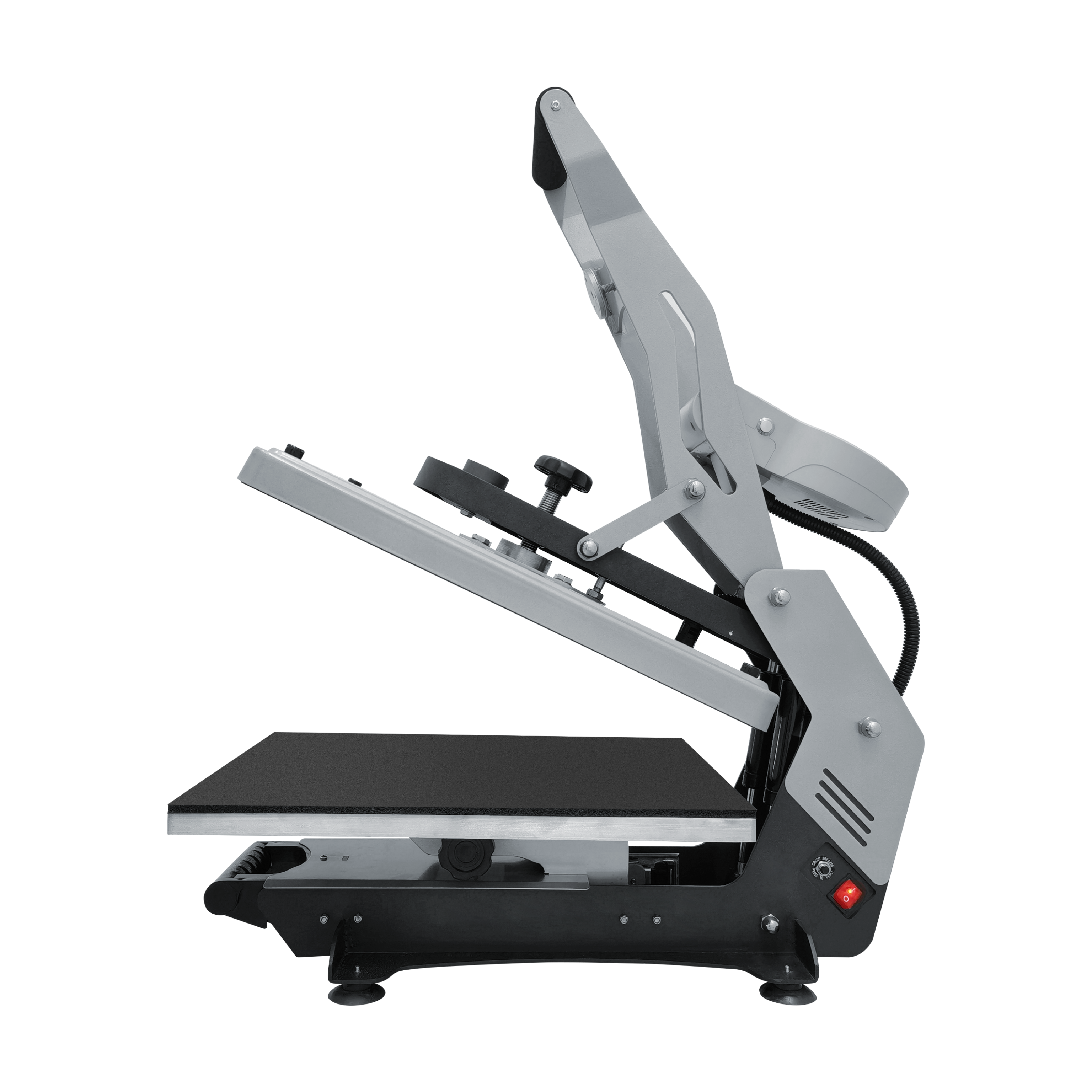

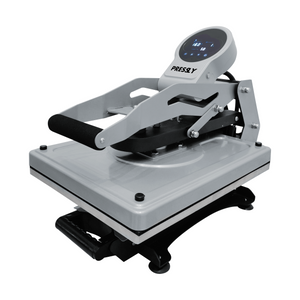

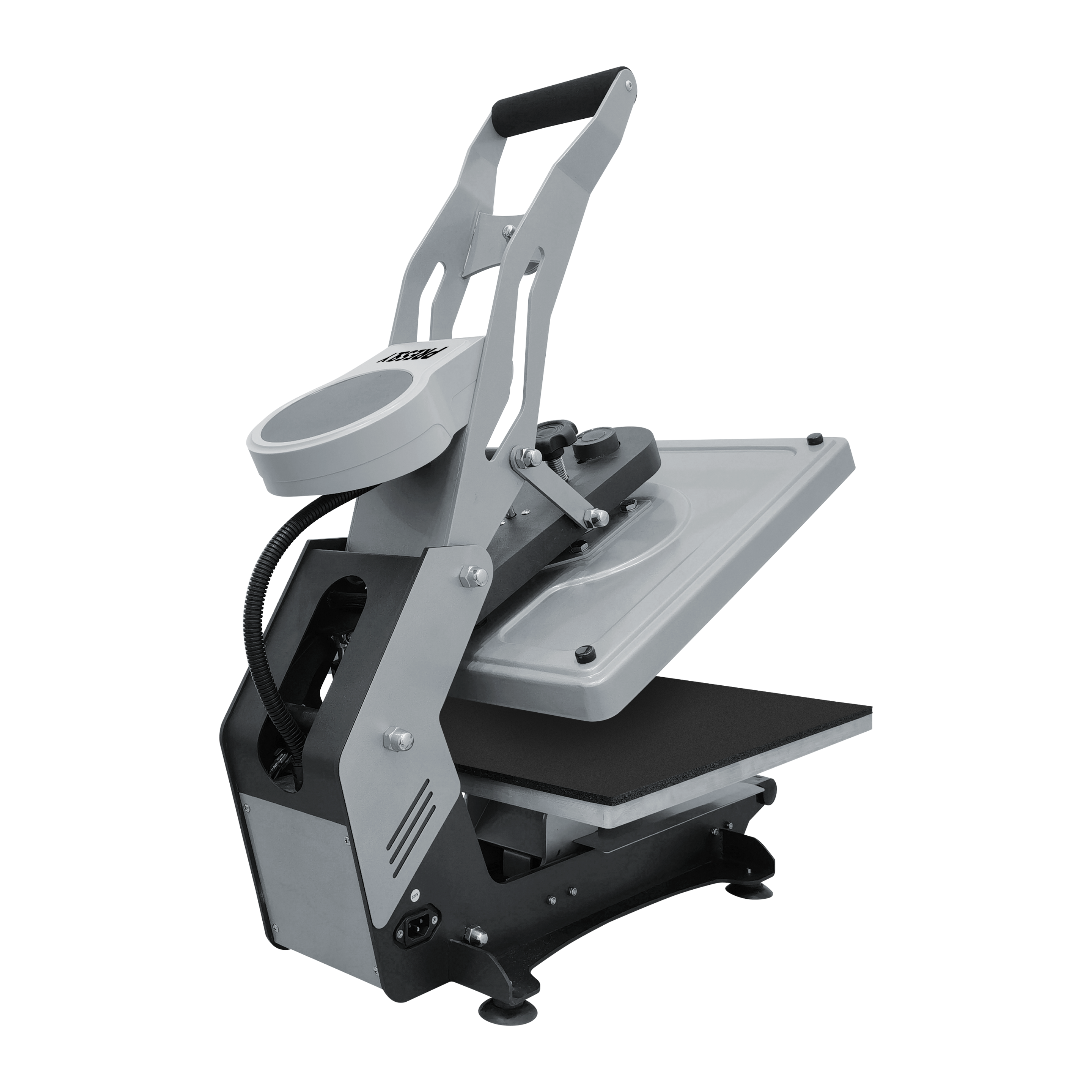

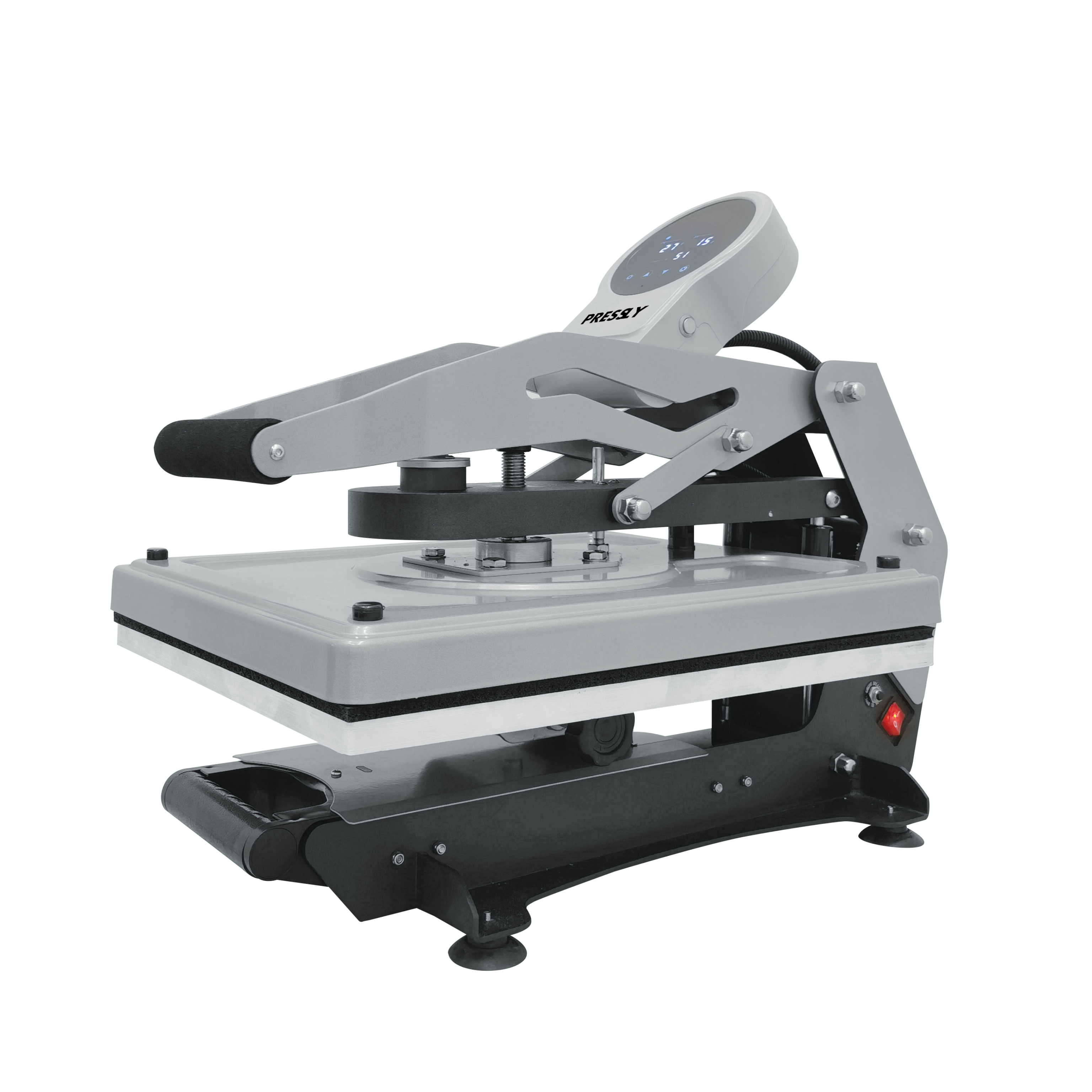

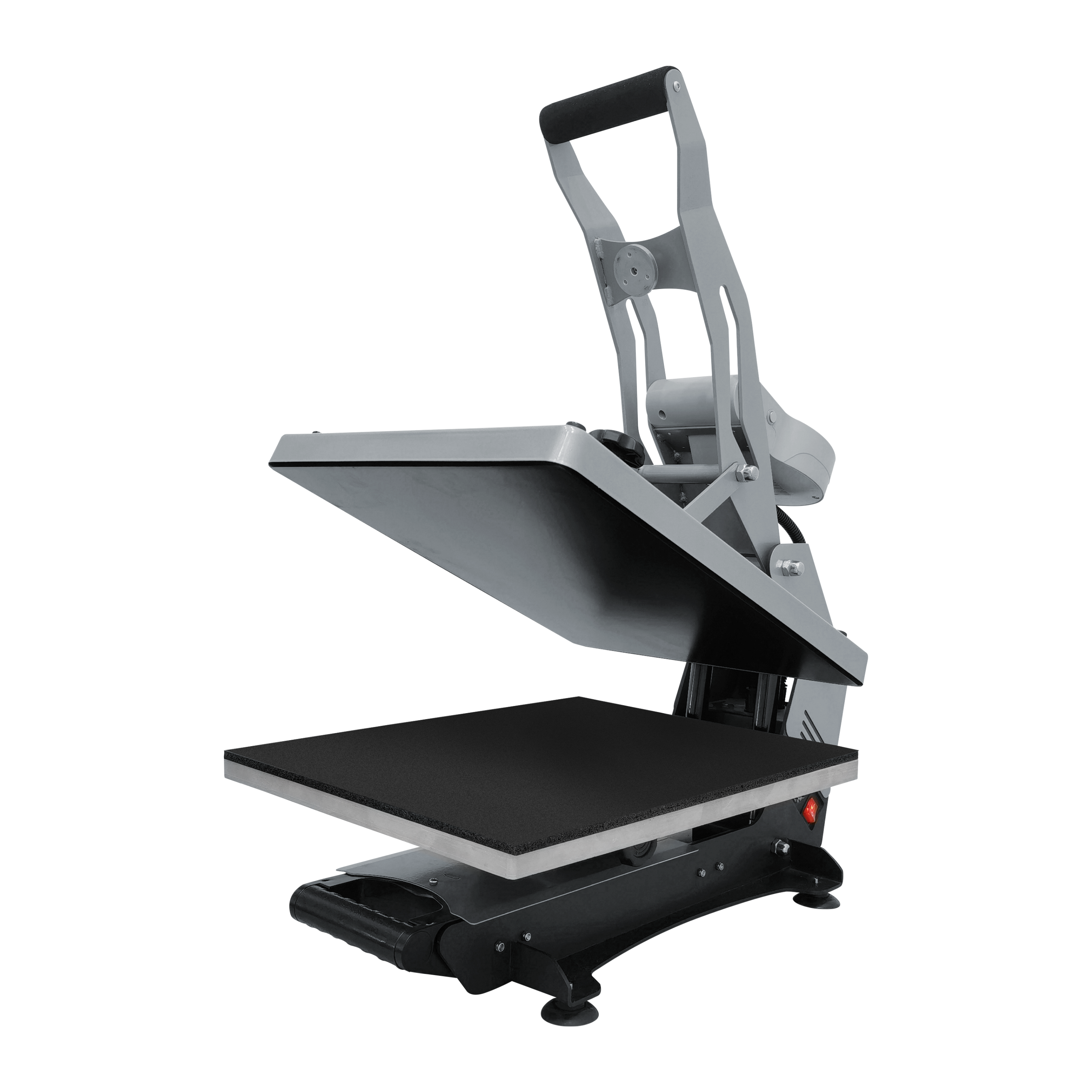

SlideMaster -HP3804 -Semi-Automatic Heat Press

Model: Pressly HP3804 SlideMaster

Voltage: 110V/220V

Heat Plate Size: 15.7x19.7 inches (40x50 cm)

Power: 1800W - 2200W

Controller: LCD Controller

Max. Temperature: 450°F (232°C)

Temp. Accuracy: ±4°F (±2°C)

Max. Pressing Force: 794 lbs (360kg)

Working Mechanism: Lever & Magnetic

Acceptable Thickness: ≤0.39 inches (≤1 cm)

Stand-By Feature: Max. 120 minutes

Product Dimensions (L x W x H): 30 x 24.5 x 19.3 inches

Product Weight: 110lbs (50kg)

Packaging Dimensions (L x W x H): 30.5 x 25.2 x 20 inches

Package Weight: 114.5 lbs (52 kg)

Certifications: CE, UKCA

Read the Instruction Guide: Carefully read and understand the comprehensive instruction guide that comes with the machine for detailed setup and safety instructions.

Set Up the Machine: Place the heat press on a flat, stable surface in a well-ventilated area. Plug the machine into an appropriate power source (110V/220V). Ensure the machine is properly assembled and the platen is securely in place.

Adjust Temperature and Time: Set the desired temperature using the LCD controller. Set the timer for the appropriate duration based on your material and design. You can use the multi-timer function for pre-heating, application, and post-press stages.

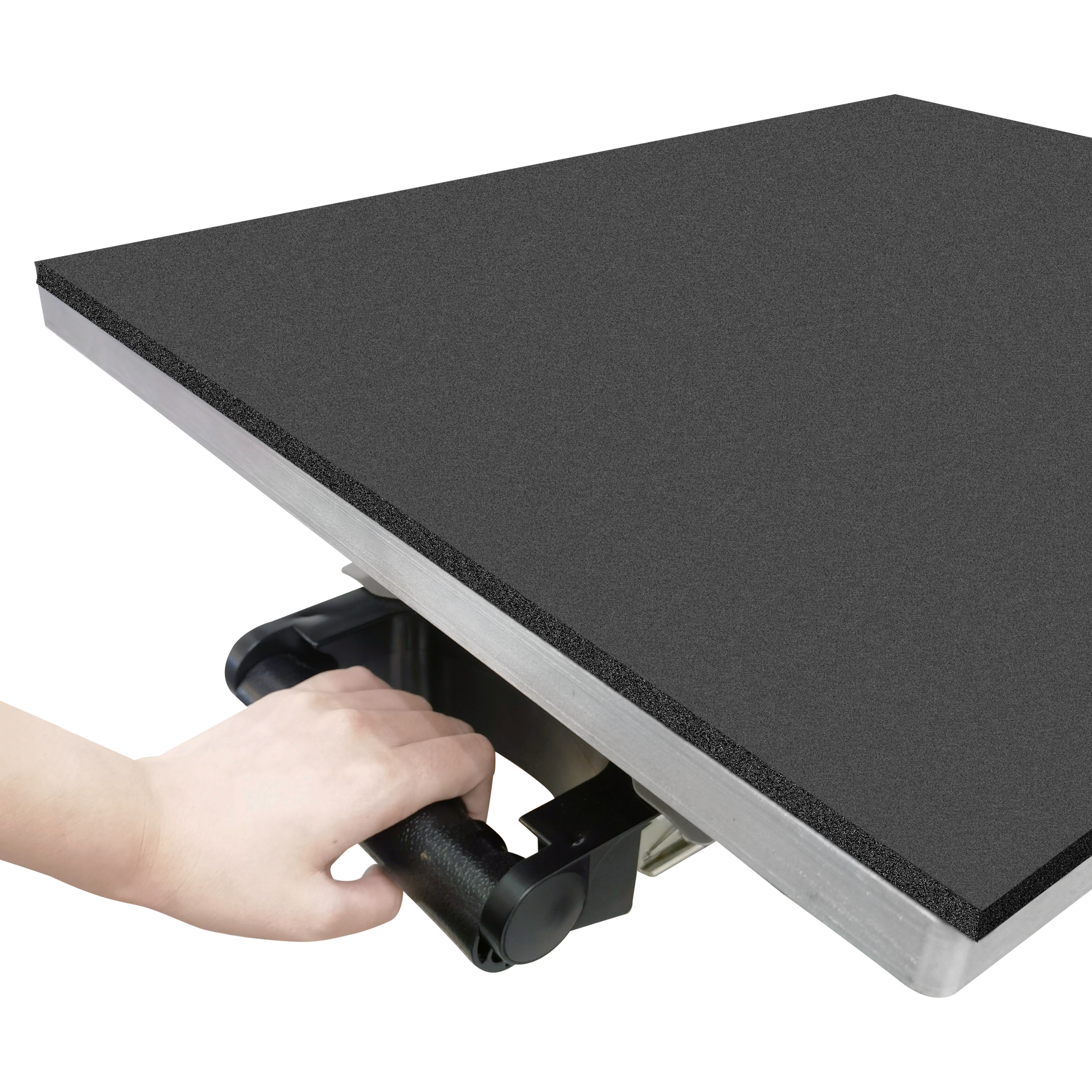

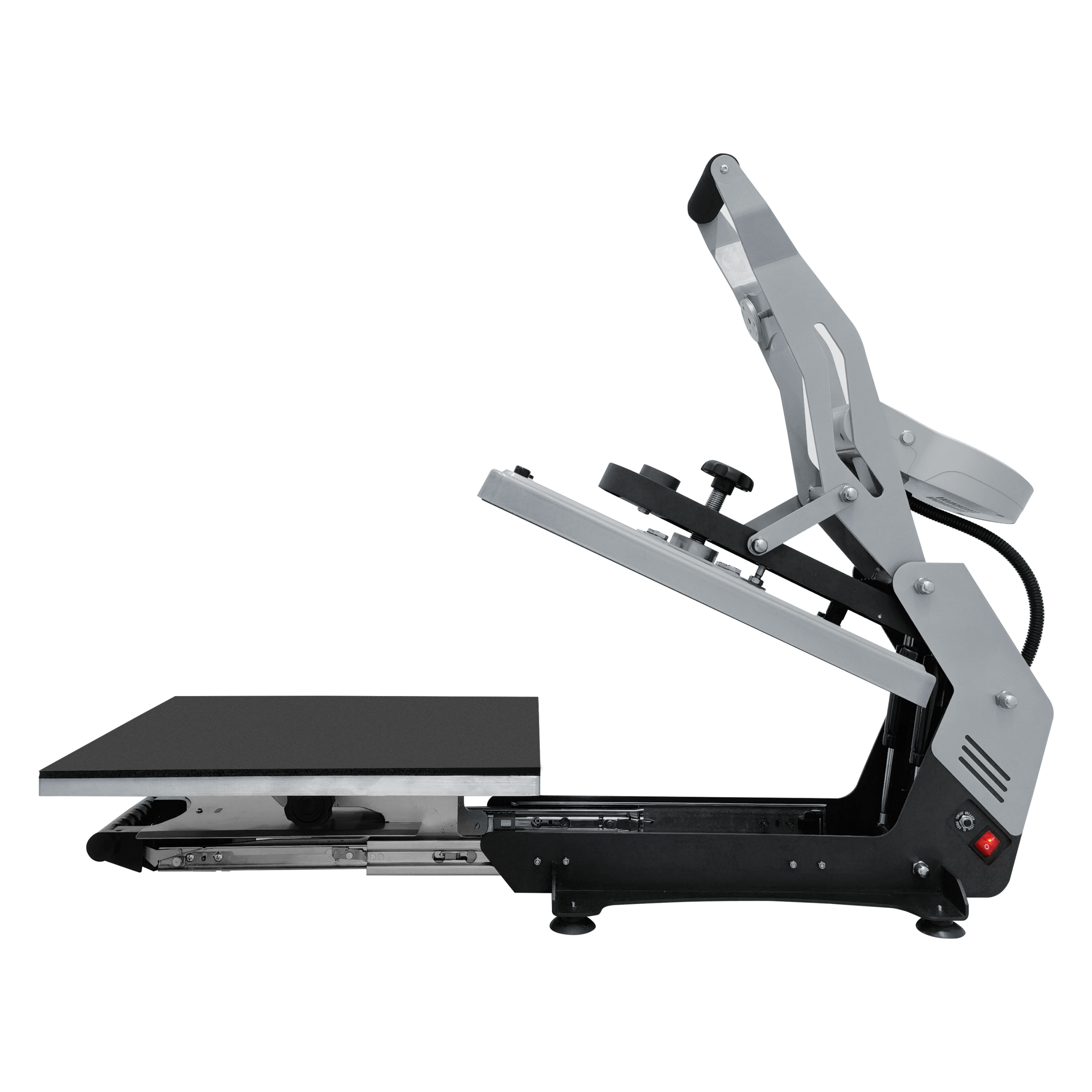

Prepare the Garment: Pull out the slide-out drawer platen and place the garment or material on it. Make sure the material is flat, wrinkle-free, and properly positioned.

Press the Garment: Slide the drawer platen back into position. Close the heat press using the lever mechanism. The magnetic assist will help lock the machine into place. Press for the desired time.

Remove the Garment: Once the press opens, carefully remove the garment. Allow it to cool before handling.

Clean the Machine: Wipe the platen with a damp cloth to remove any residue. Ensure the machine is kept clean and free from debris.

DTF Transfers Arizona offers a limited 6-month warranty for this product, covering non-consumable parts under normal use. Consumable parts, such as printheads, printhead covers, dampers, capping stations, wiper blades, belts, bulbs, filters and, other similar wear-and-tear components are not covered under the warranty. Use of any ink, film, powder, or other supplies that DTF Transfers Arizona does not sell or distribute will void warranty coverage. Please note that the sale of this product is considered final. However, the warranty is provided to address any qualifying issues with the equipment. The warranty begins from the date of purchase. During the warranty period, DTF Transfers Arizona will provide remote technical support and, if available, repair or replacement video guidance for any issues related to parts covered under the warranty. DTF Transfers Arizona is not responsible for damages caused during shipping, but all shipments are insured. If you receive a damaged order, contact us immediately to create a ticket. We will coordinate with the shipping company to resolve the issue. Resolution or refund from the shipping company may take approximately 50–60 business days. By purchasing and using this product, you acknowledge and accept the terms and conditions outlined in this section. For warranty claims or further assistance, please contact us directly.
