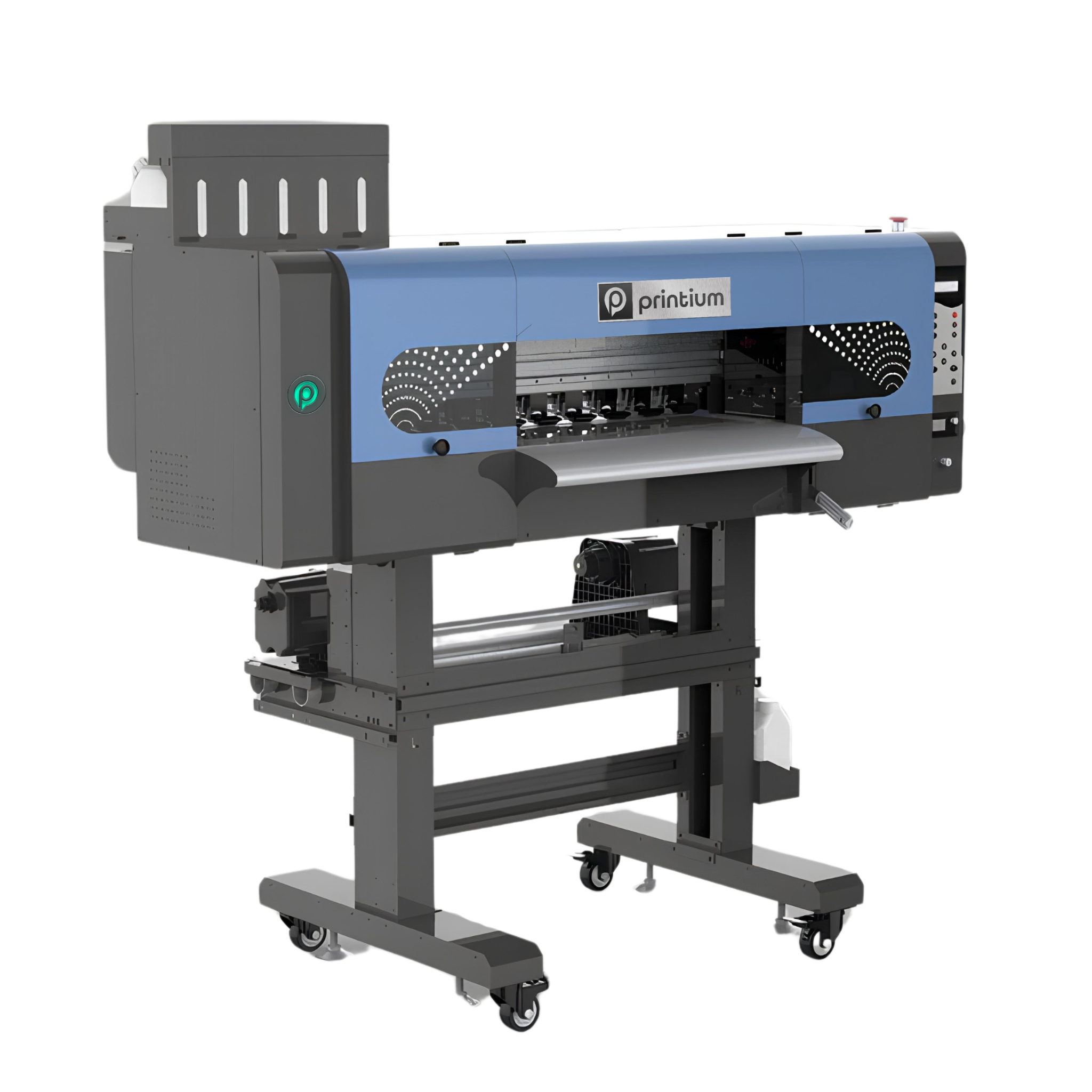

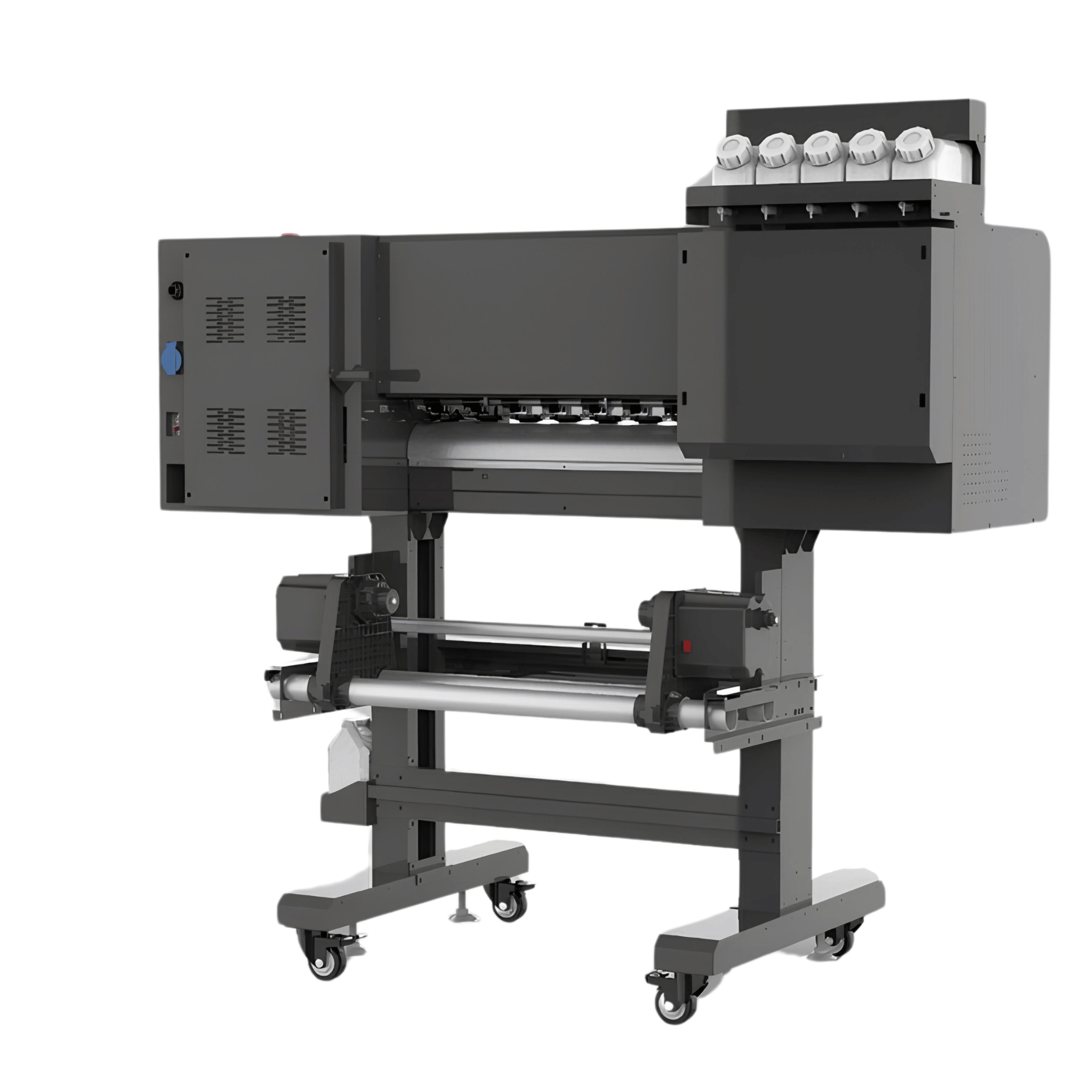

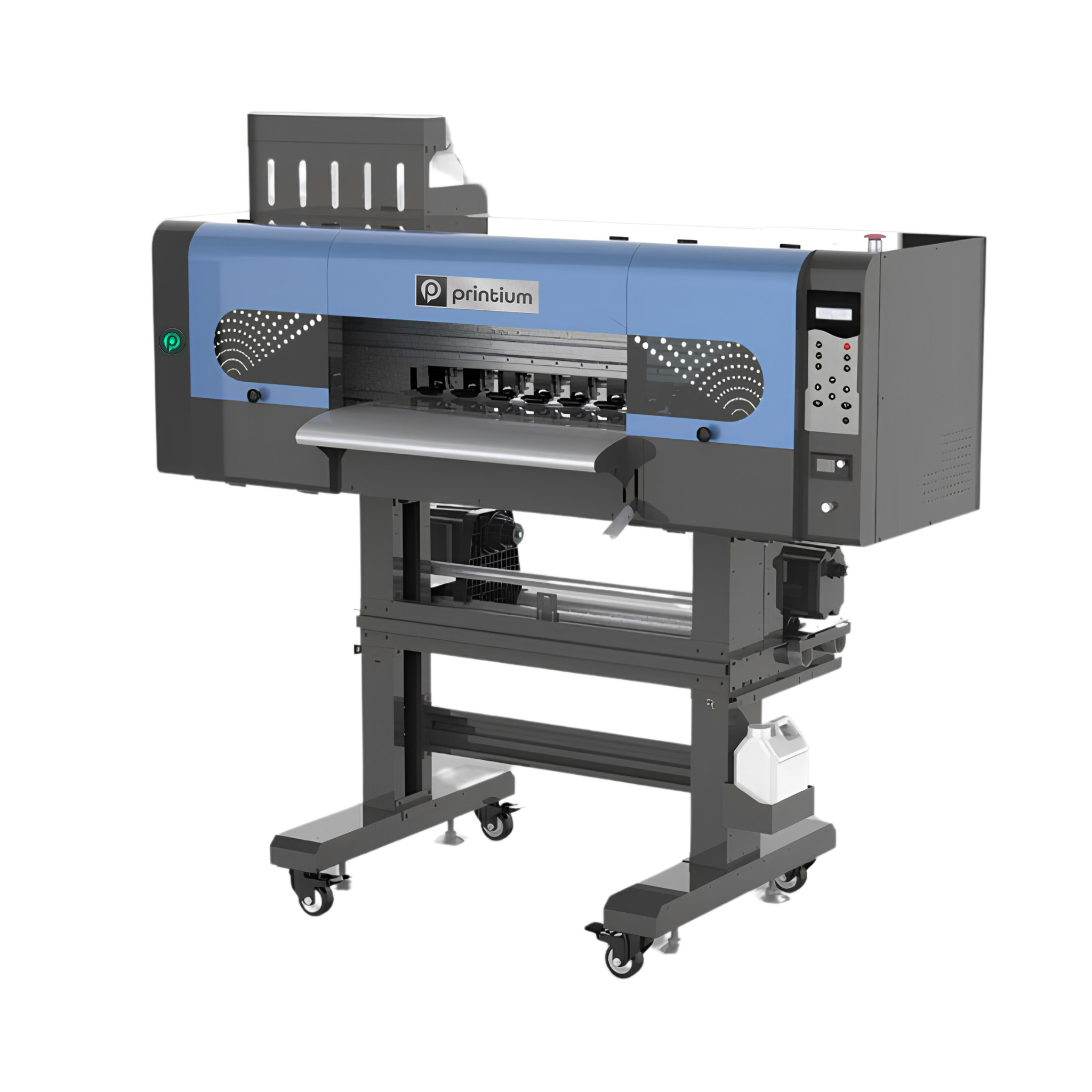

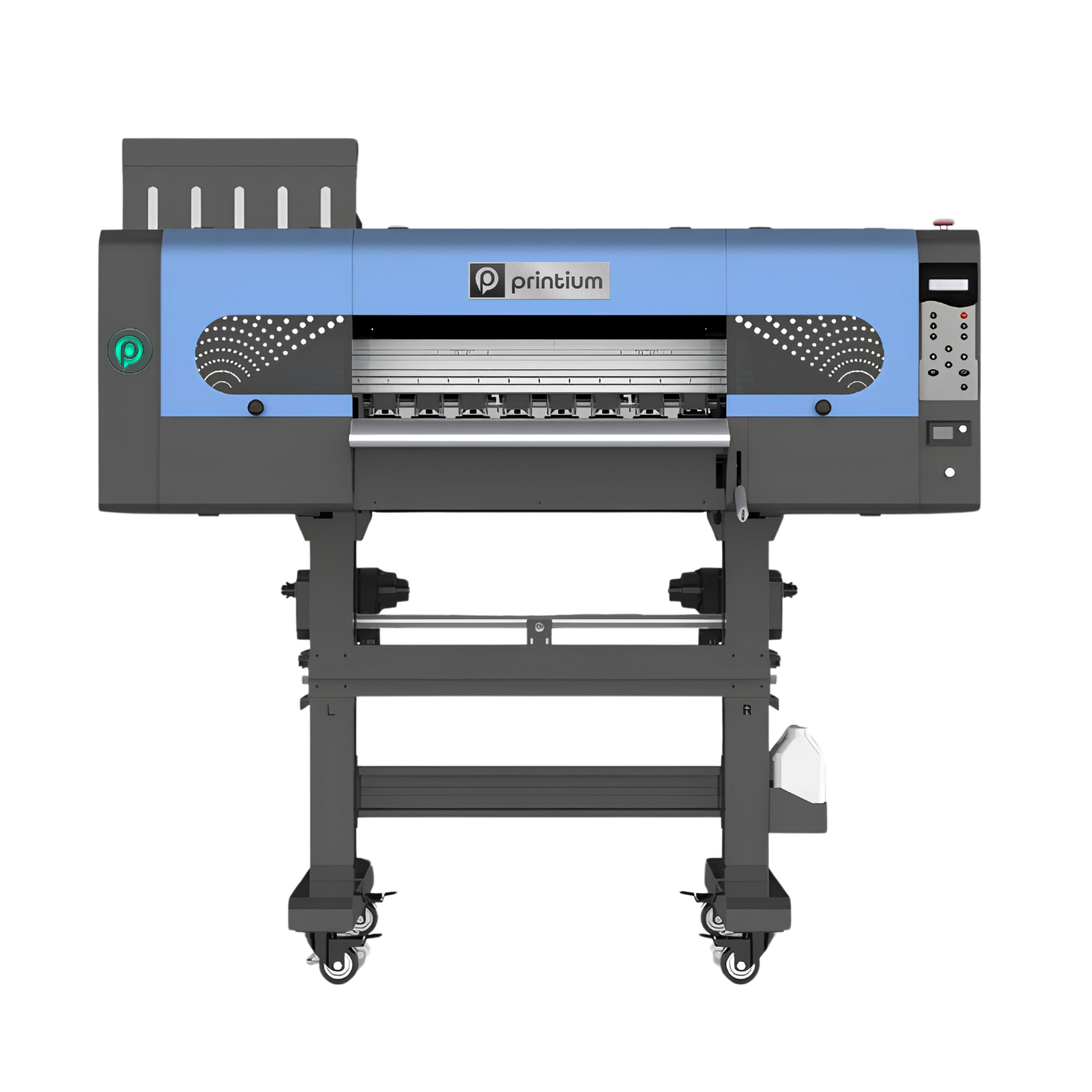

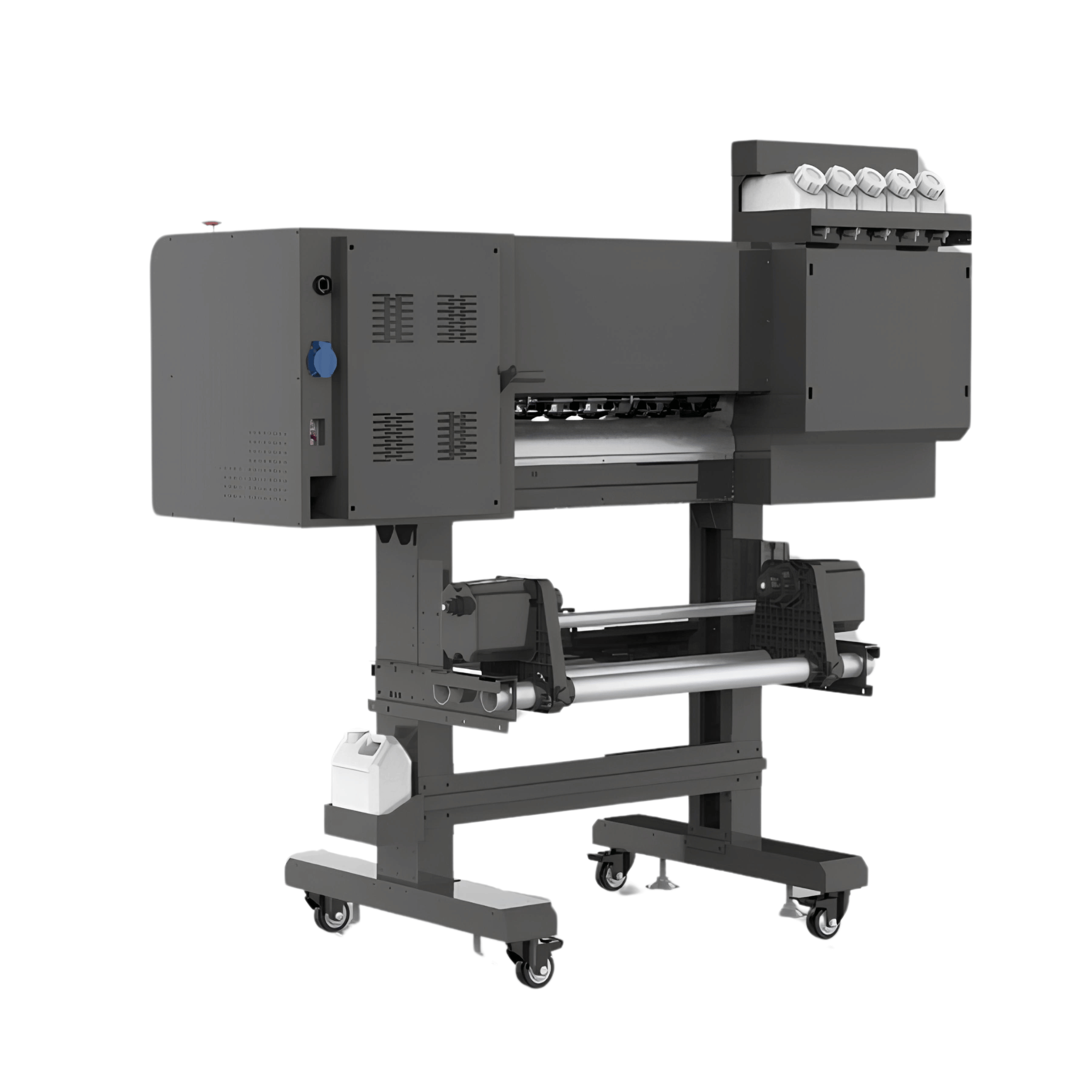

P604 - 24" 4 Head DTF Printer

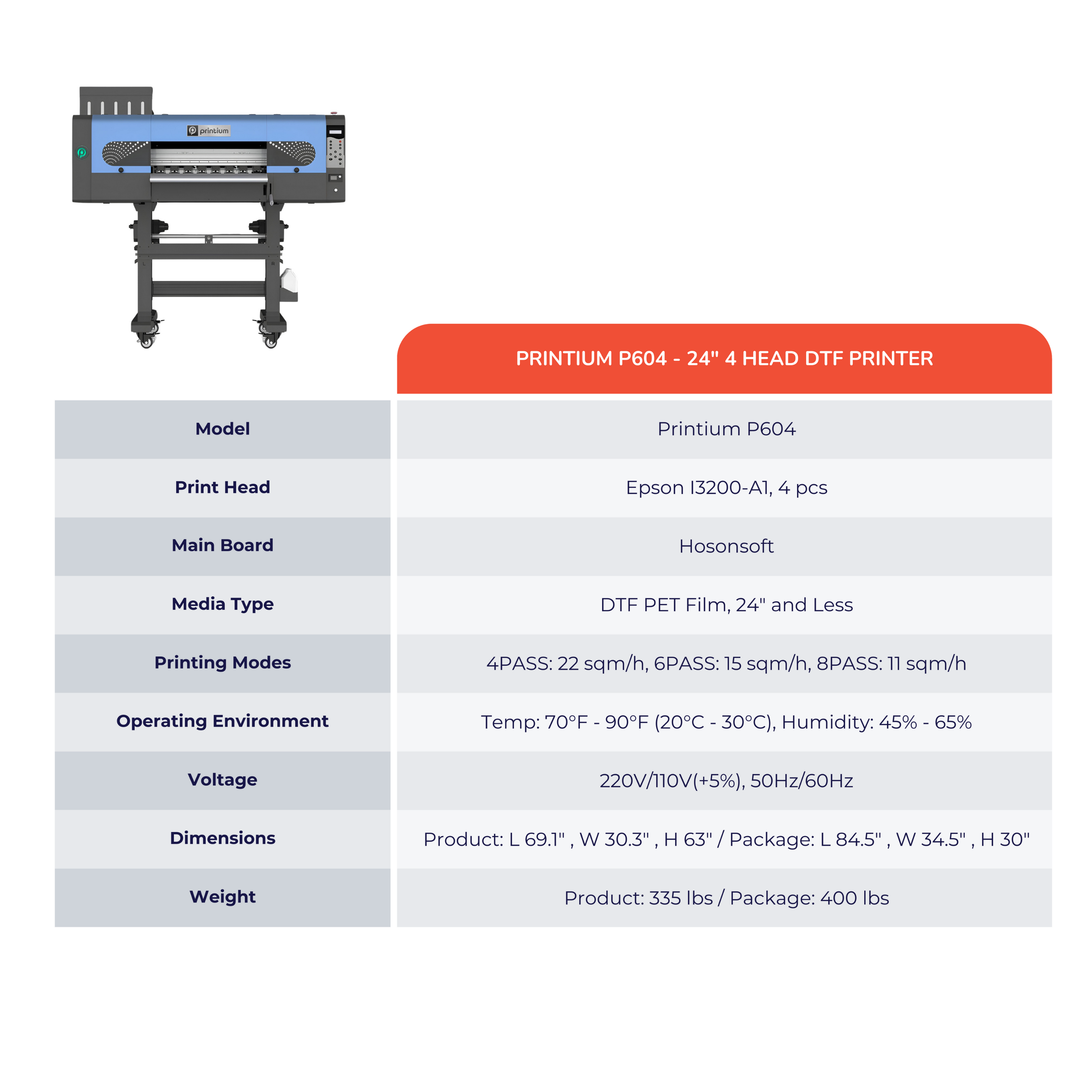

Model: Printium P604 24" 4-Head DTF Printer

Product Dimensions: Length: 69.1 inches, Width: 30.3 inches, Height: 63 inches

Product Weight: 335 lbs

Package Dimensions: Length: 84.5 inches, Width: 34.5 inches, Height: 30 inches

Package Weight: 400 lbs

Voltage:220V/110V(+5%), 50Hz/60Hz

Printing Modes: 4PASS: 22 sqm/h, 6PASS: 15 sqm/h, 8PASS: 11 sqm/h

Printhead: Epson I3200-A1, 4 pcs

Media Type: PET Film

RIP Software: Maintop and FlexiPRINT

Supported OS: Windows 8 or newer

Computer Specs: Intel Core i5 11th Gen or higher / AMD Ryzen 5 5000 series or higher, 16GB RAM or more, 512GB SSD or larger

Operating Temperature: 70°F - 90°F (20°C - 30°C)

Operating Humidity: 45% - 65%

Get Professional Help: If needed, seek professional assistance for installation to ensure proper setup.

Unpack with Caution: Be cautious during unpackaging, as the printer is heavy. It’s recommended to have at least two people for safe handling.

Follow Installation Guide: Refer to the provided installation guide and documentation from the seller or technical service for a smooth setup process.

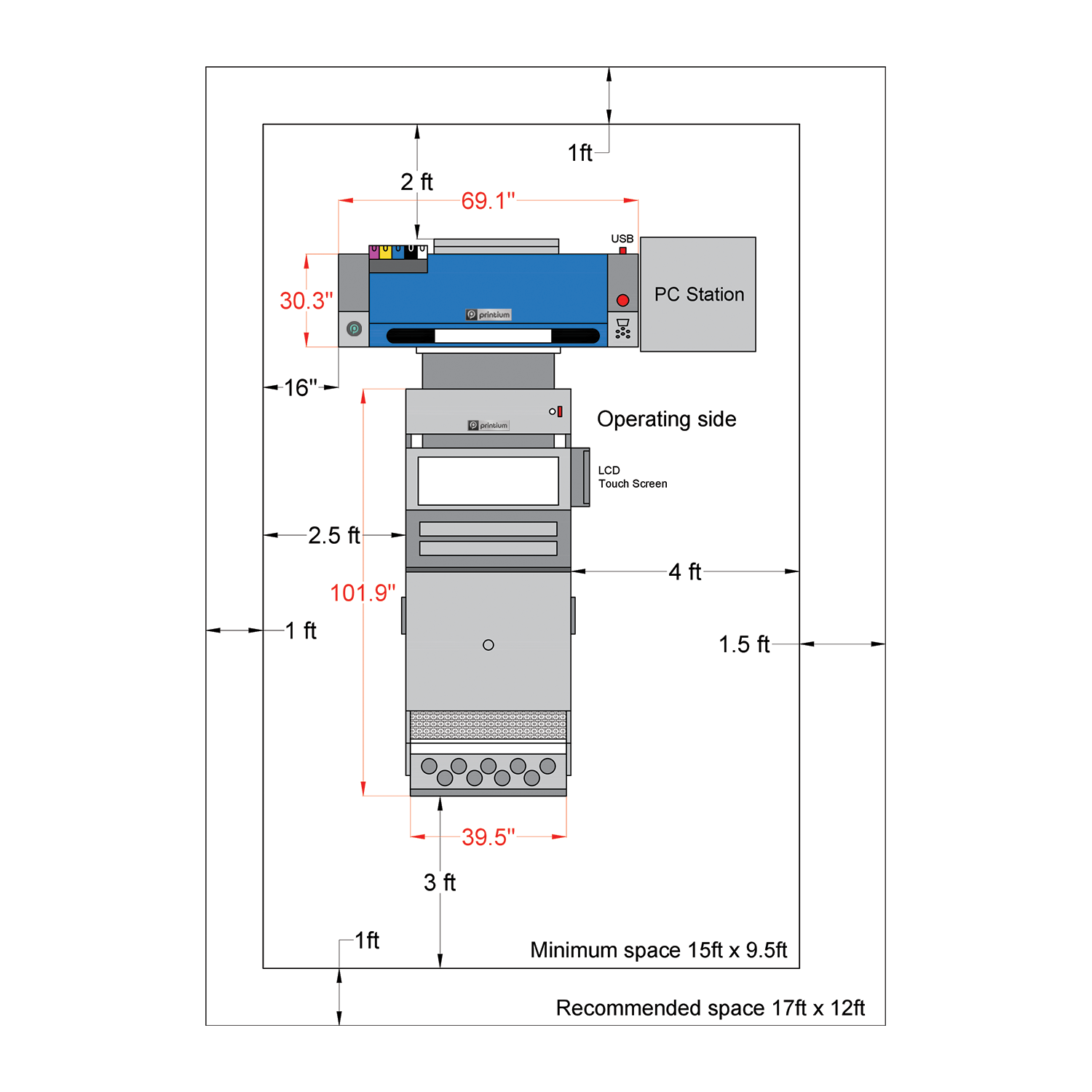

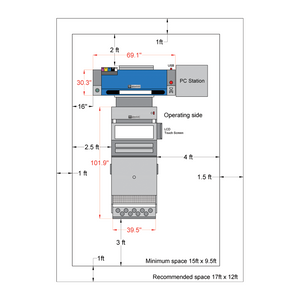

Check Operating Area: Ensure the printer is placed in an area with the correct temperature (70°F - 90°F) and humidity (45% - 65%) to maintain optimal performance. Ensure adequate ventilation to manage potential fumes.

Connect Printer and Software: Install the RIP software (Maintop or FlexiPrint) on a compatible computer and connect the printer to the system.

Load Media Correctly: Carefully load the PET film and adjust the media guides for proper alignment.

Test Print: Run a test print to ensure everything is functioning correctly before starting full production.

Regular Maintenance: Clean the printheads regularly and check ink levels to ensure smooth operation.

• Printium P604 24" 4-Head DTF Printer
• RIP software for PC (Customers can select either Maintop or FlexiPrint)
• 6-month limited warranty
• USA based support via phone or email
