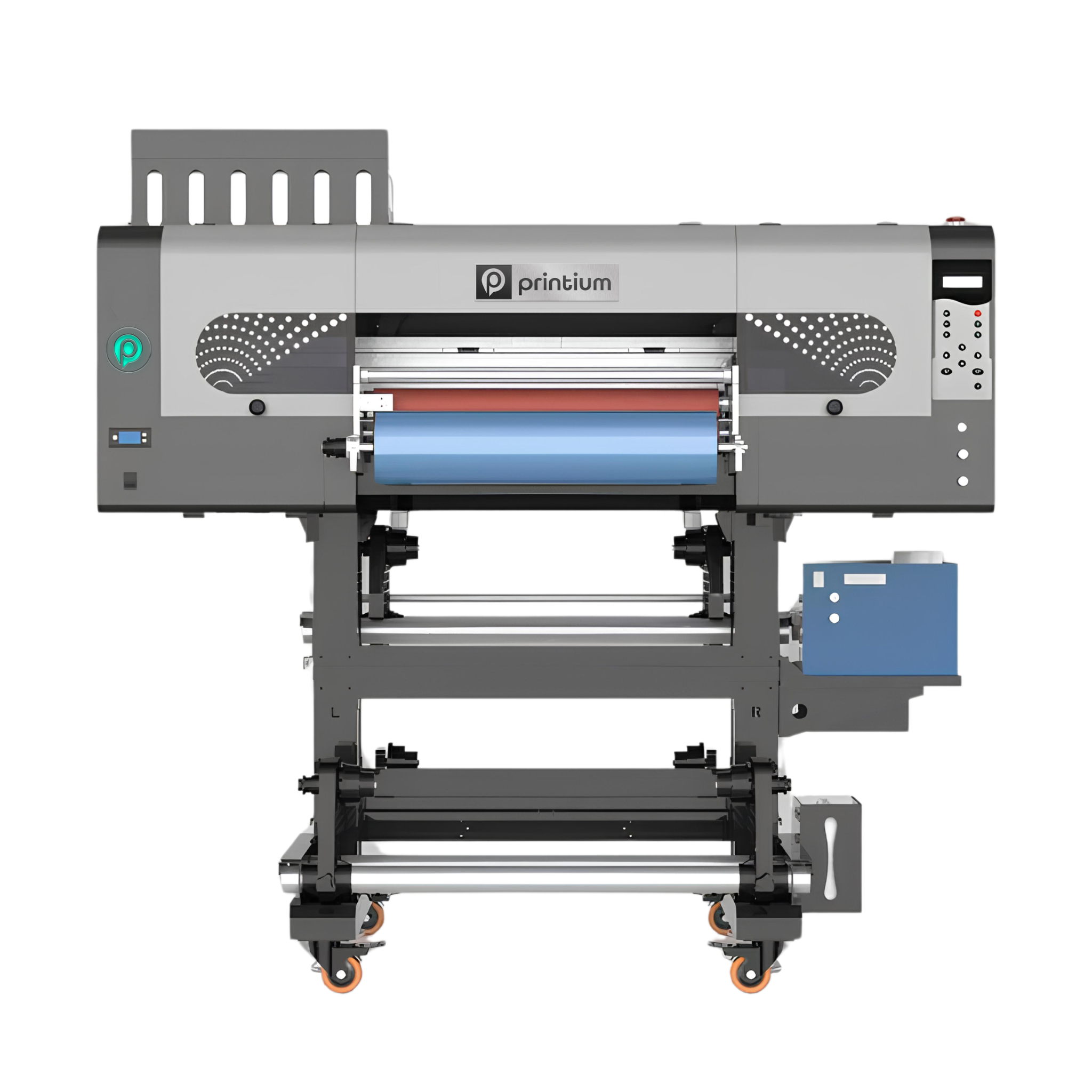

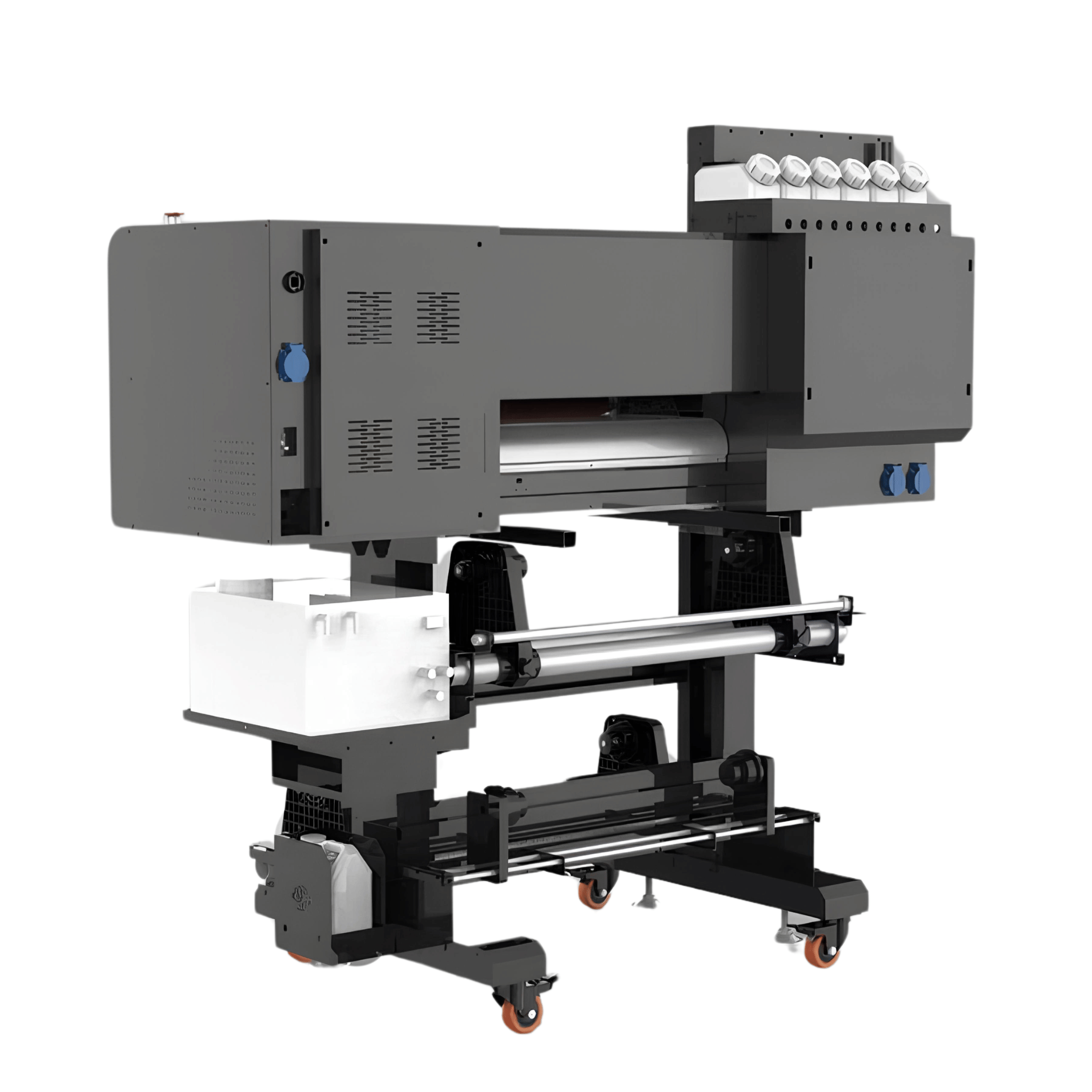

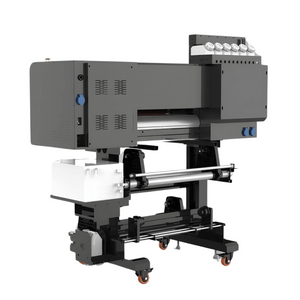

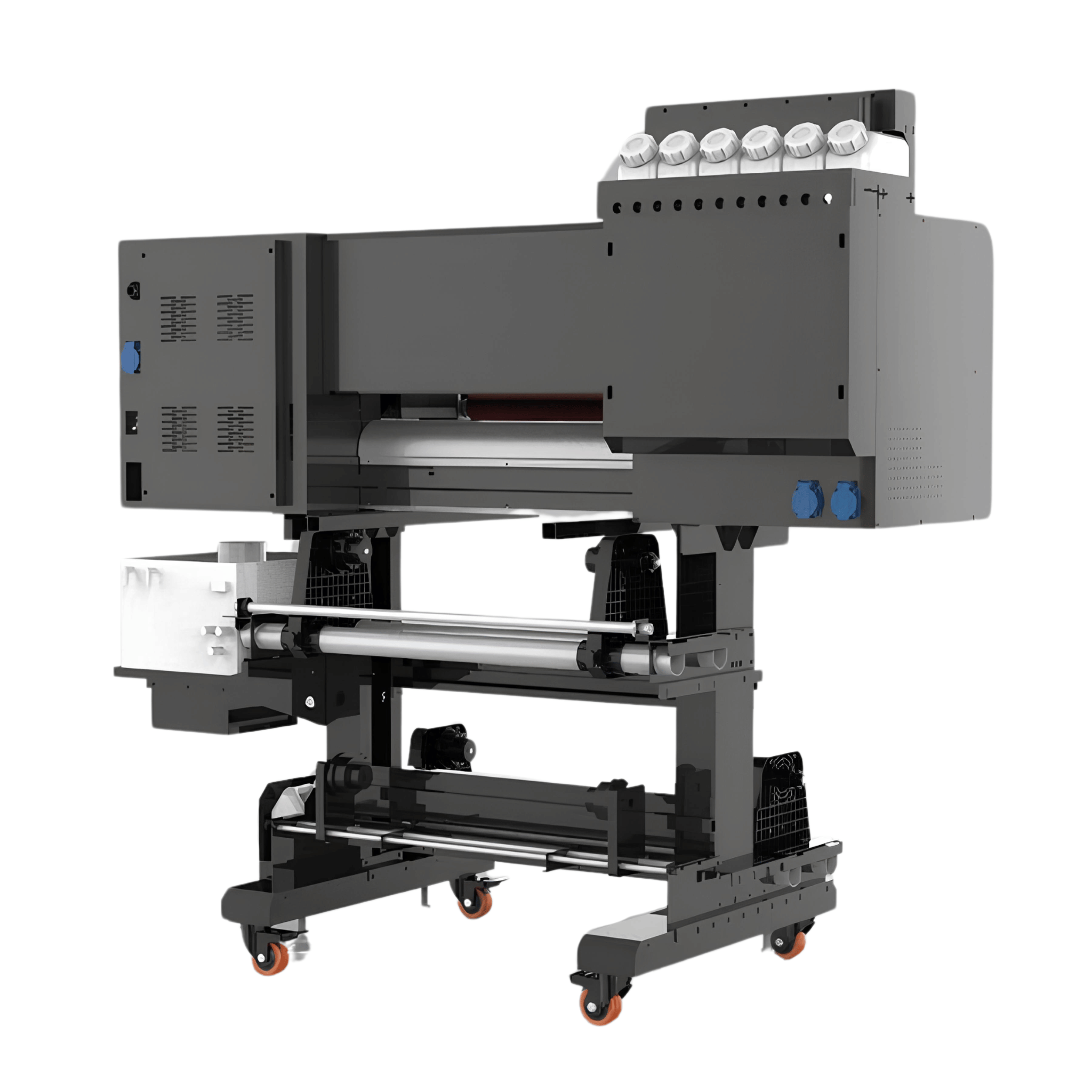

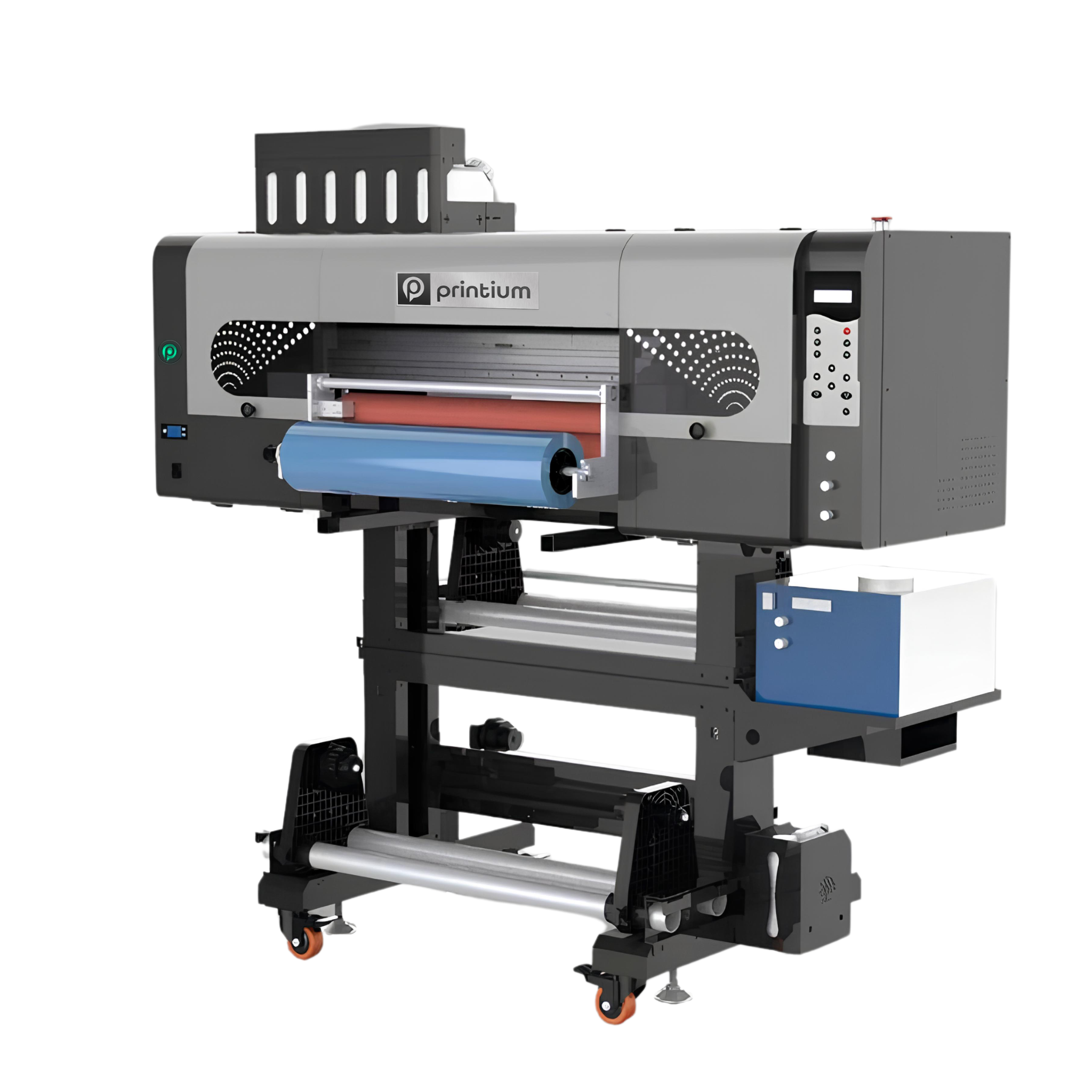

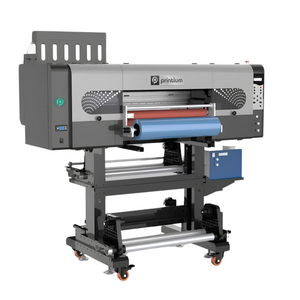

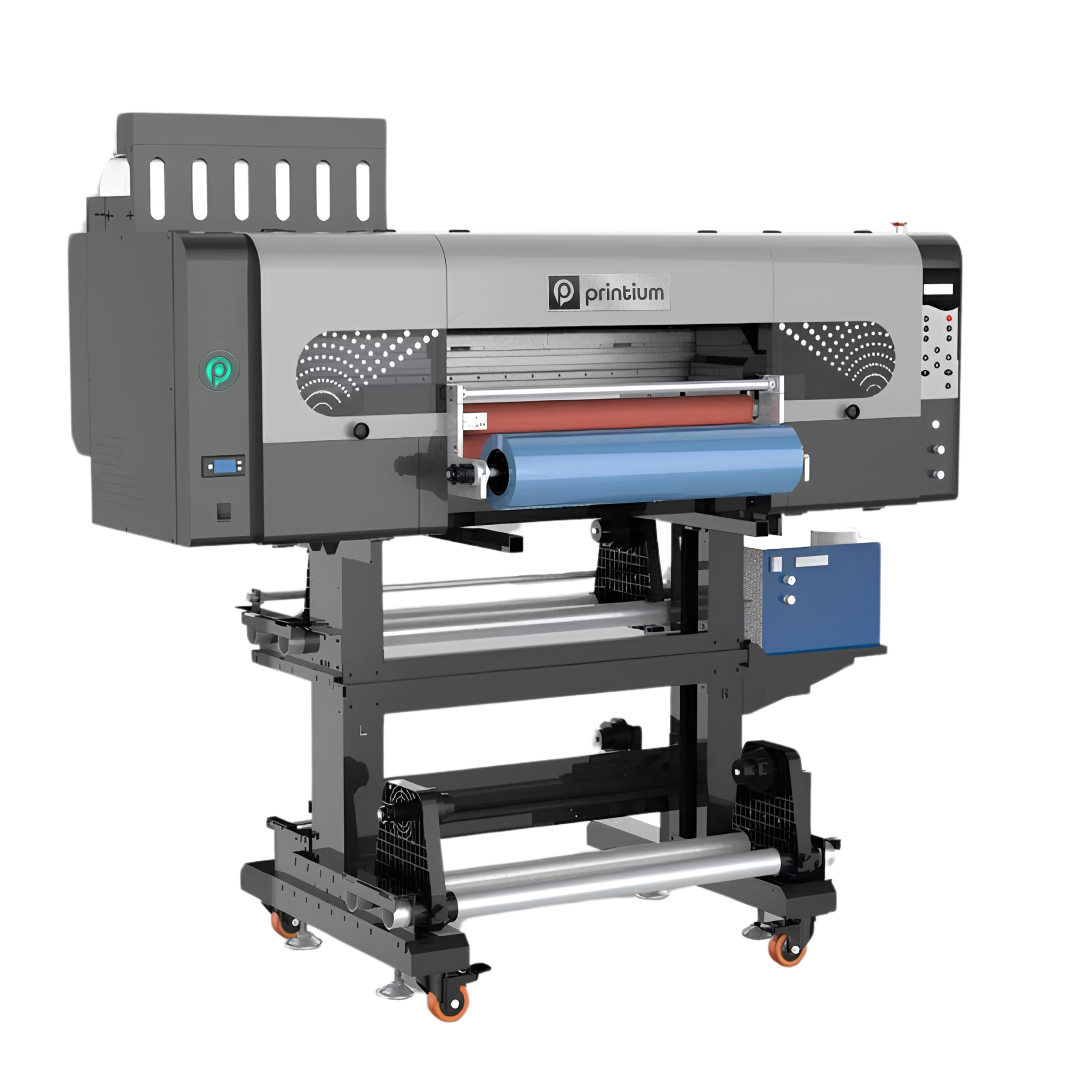

P604U - UV DTF Printer

Model: Printium P604U UV DTF Printer

Product Dimensions: Length: 69.1 inches, Width: 30.3 inches, Height: 63 inches

Product Weight: 335 lbs

Package Dimensions:

• Package 1: Length: 84.5 inches, Width: 34.5 inches, Height: 30 inches
• Package 2: Length: 26 inches, Width: 20 inches, Height: 21 inches

Package Weight:

• Package 1: 485 lbs
• Package 2: 55 lbs

Heating System: Circulating water cooling system

Transmission Mode: Rubber roll to drive

Voltage: 220V/110V(+5%), 50Hz/60Hz

Power: 1800W

Printing Modes: 6PASS / 8PASS

Printhead: Epson I3200-U1, 3 pcs

Media Type: Crystal label AB film, release film, advertising soft coil material

RIP Software: Maintop and FlexiPRINT

Supported OS: Windows 8 or newer

Computer Specs: Intel Core i5 11th Gen or higher / AMD Ryzen 5 5000 series or higher, 16GB RAM or more, 512GB SSD or larger

Operating Temperature: 70°F - 90°F (20°C - 30°C)

Get Professional Help: If needed, seek professional assistance for installation to ensure proper setup.

Unpack with Caution: Be cautious during unpackaging, as the printer is heavy. It’s recommended to have at least two people for safe handling.

Follow Installation Guide: Refer to the provided installation guide and documentation from the seller or technical service for a smooth setup process.

Check Operating Area: Ensure the printer is placed in an area with the correct temperature (70°F - 90°F) and humidity (40% - 60%) to maintain optimal performance. Ensure adequate ventilation to manage potential fumes.

Connect Printer and Software: Install the RIP software (Maintop or FlexiPrint) on a compatible computer and connect the printer to the system.

Load Media Correctly: Carefully load the UV films and adjust the media guides for proper alignment.

Test Print: Run a test print to ensure everything is functioning correctly before starting full production.

Regular Maintenance: Clean the printheads regularly and check ink levels to ensure smooth operation.

• Printium P604U 3-Head UV DTF Printer
• RIP software for PC (Customers can select either Maintop or FlexiPrint)
• 6-month limited warranty
• USA based support via phone or email

DTF Transfers Arizona offers a limited 6-month warranty for this product, covering non-consumable parts under normal use. Consumable parts, such as printheads, printhead covers, dampers, capping stations, wiper blades, and filters, are not covered under the warranty. Use of any ink, film, powder, or other supplies that DTF Transfers Arizona does not sell or distribute will void warranty coverage. Please note that the sale of this product is considered final. However, the warranty is provided to address any qualifying issues with the equipment. The warranty begins from the date of purchase. During the warranty period, DTF Transfers Arizona will provide remote technical support and, if available, repair or replacement video guidance for any issues related to parts covered under the warranty. DTF Transfers Arizona is not responsible for damages caused during shipping, but all shipments are insured. If you receive a damaged order, contact us immediately to create a ticket. We will coordinate with the shipping company to resolve the issue. Resolution or refund from the shipping company may take approximately 50–60 business days. By purchasing and using this product, you acknowledge and accept the terms and conditions outlined in this section. For warranty claims or further assistance, please contact us directly.
