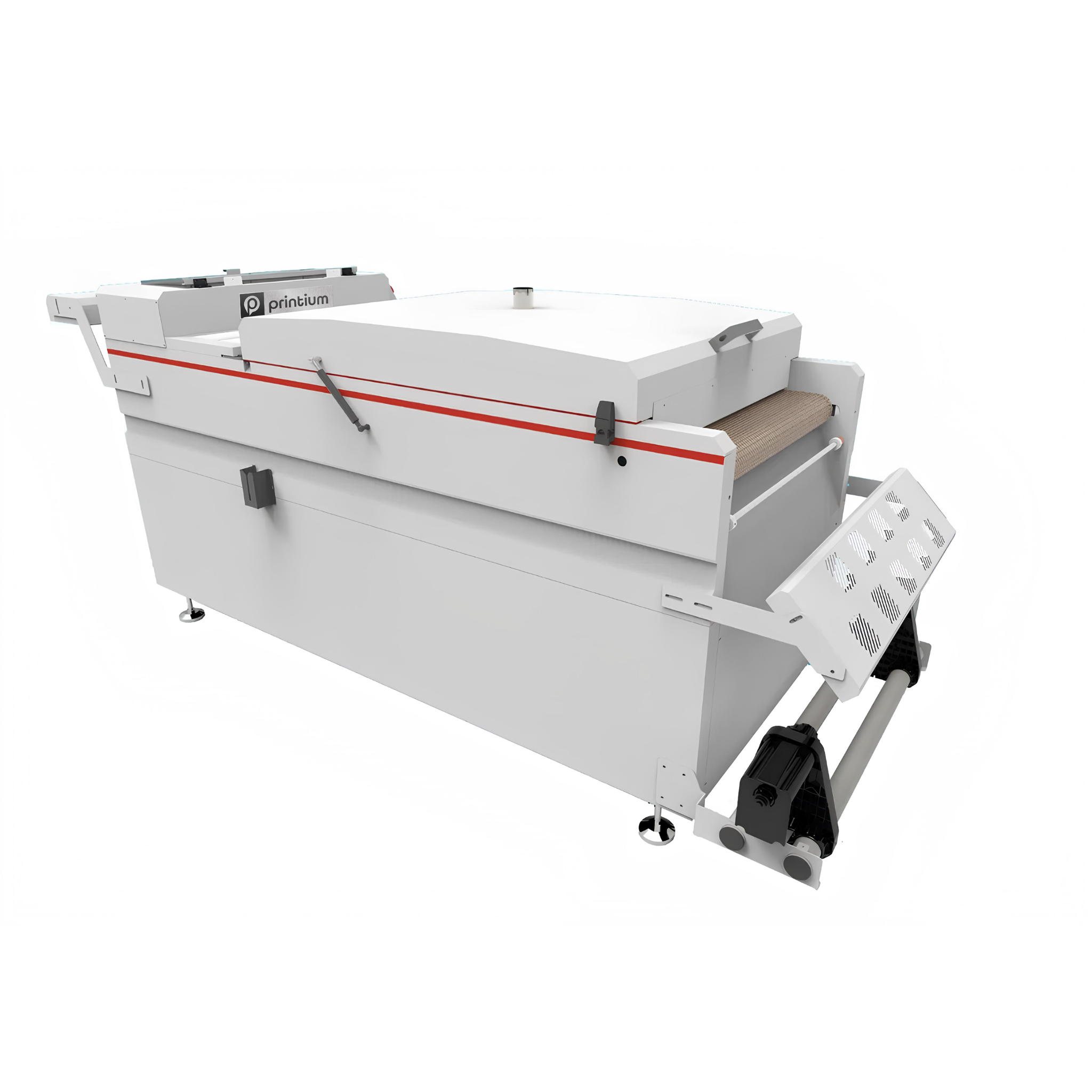

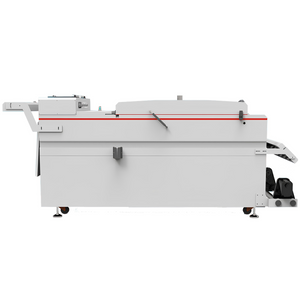

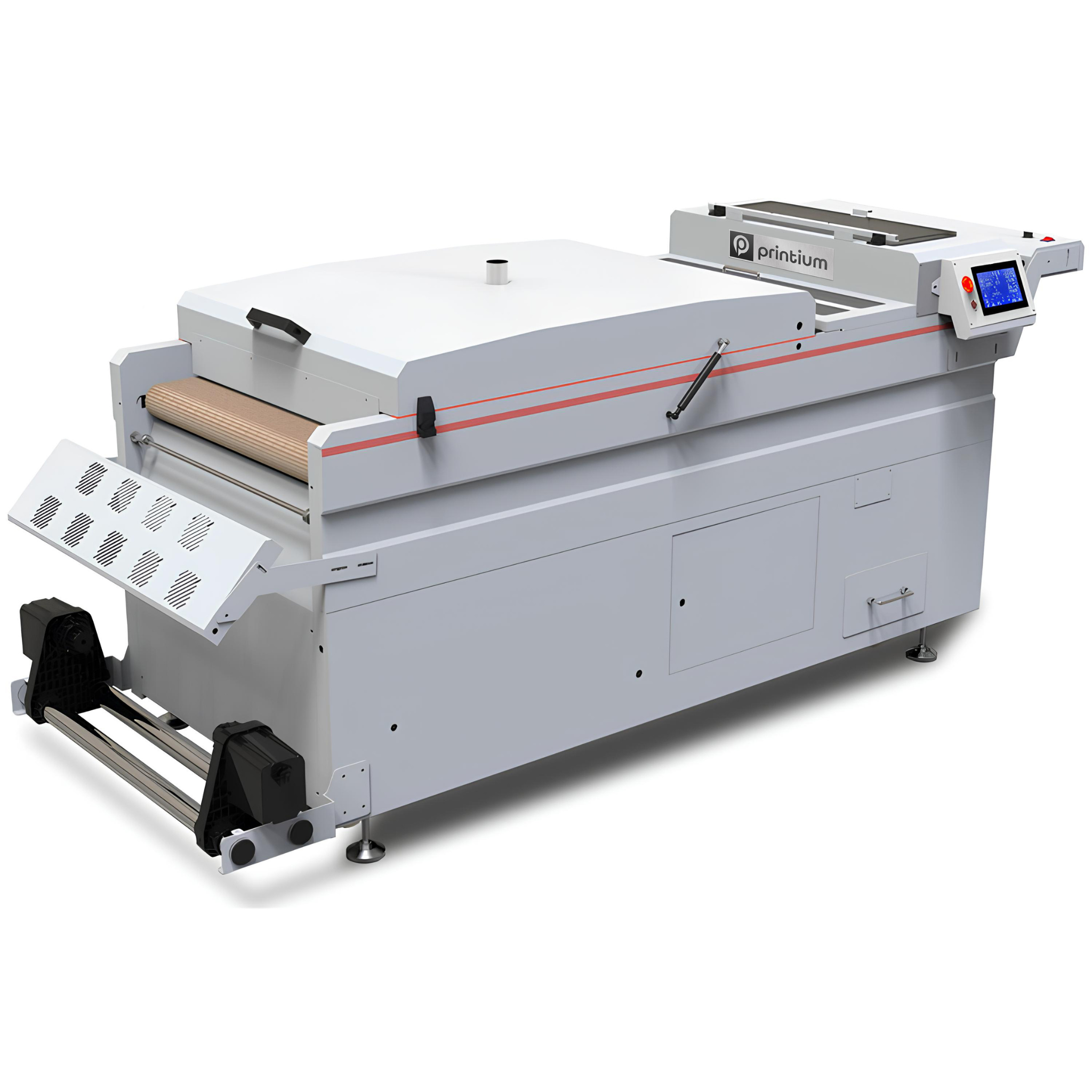

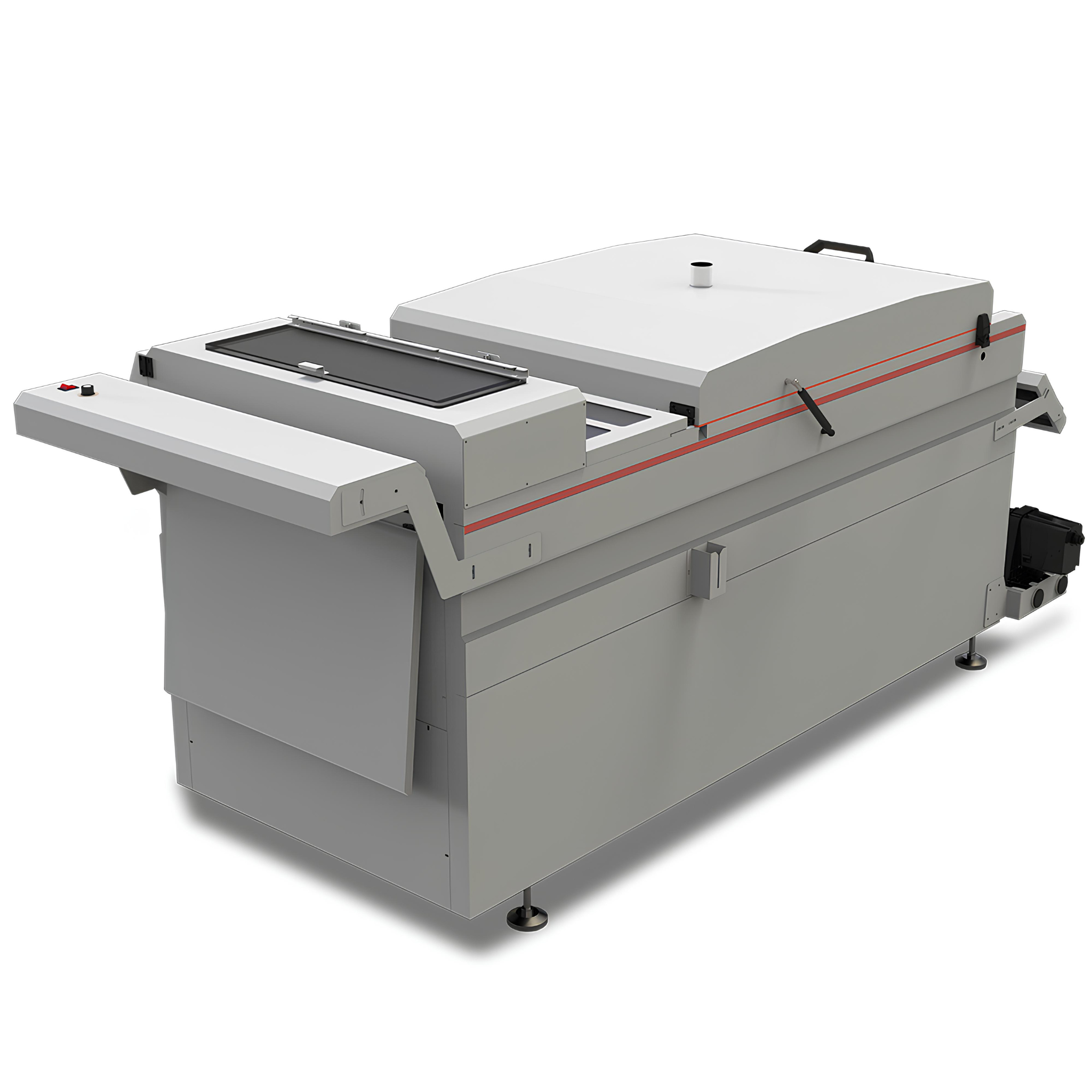

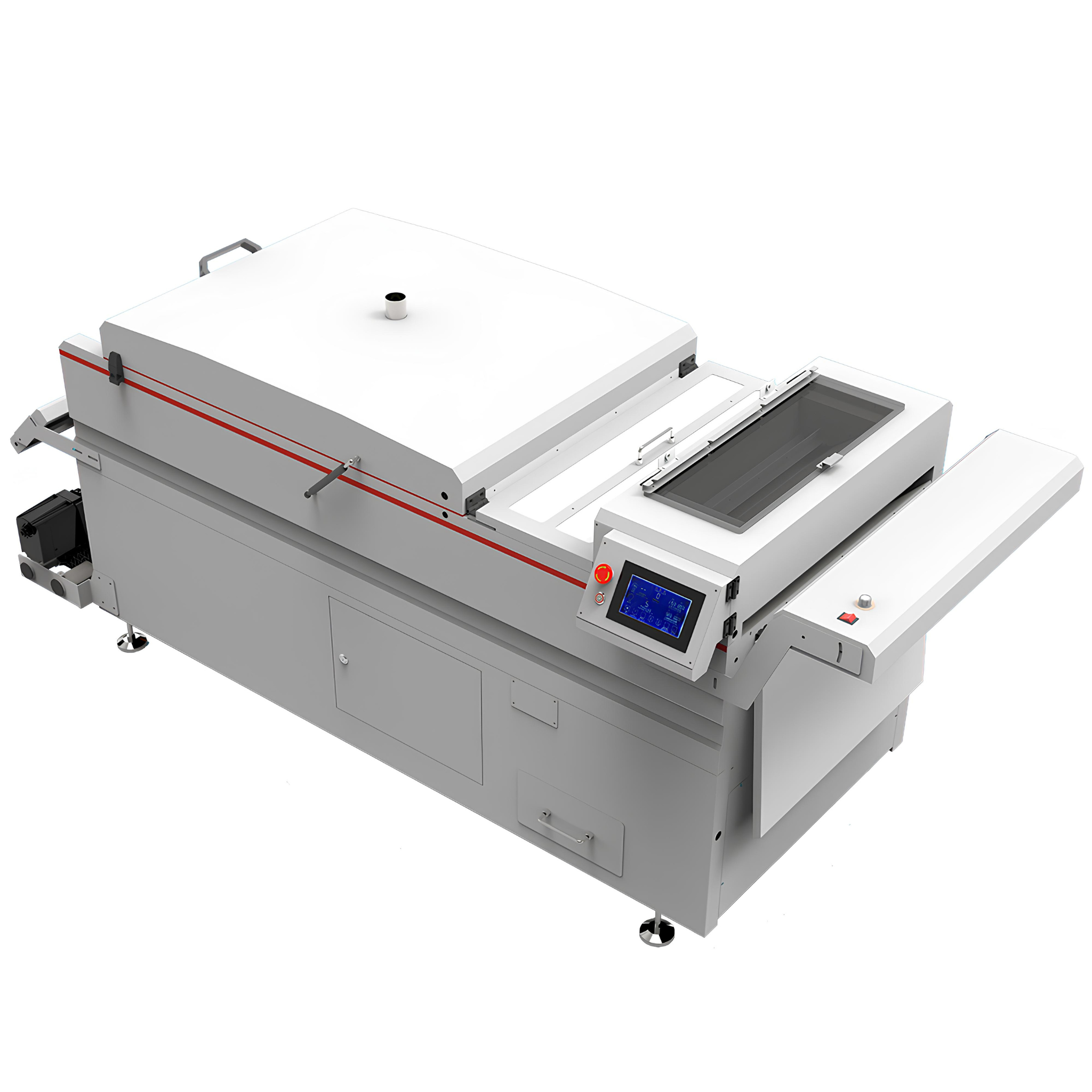

P6501 - DTF Powder Shaker Dryer

Available Width: 0-23.6 inches (0-600 mm)

Applicable Media: Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA etc.

Powder Control: Powder disperser, powder shaker and powder amount control

Heat and Dry Function: Front heat plate & Top heater, Lengthen dry fixation, cold fans

Heating: 6pcs 220V quartz infrared bulbs

Cooling: 9 pcs air cooling fans

Media Transmission: NEW Belt Type, vacuum absorption conveyor belt with LCD control and bidirectional movement.

Take up Function: Automatic Inductive

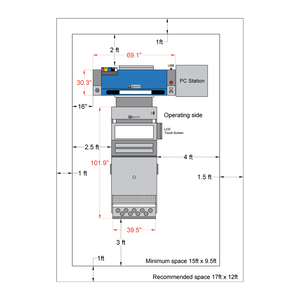

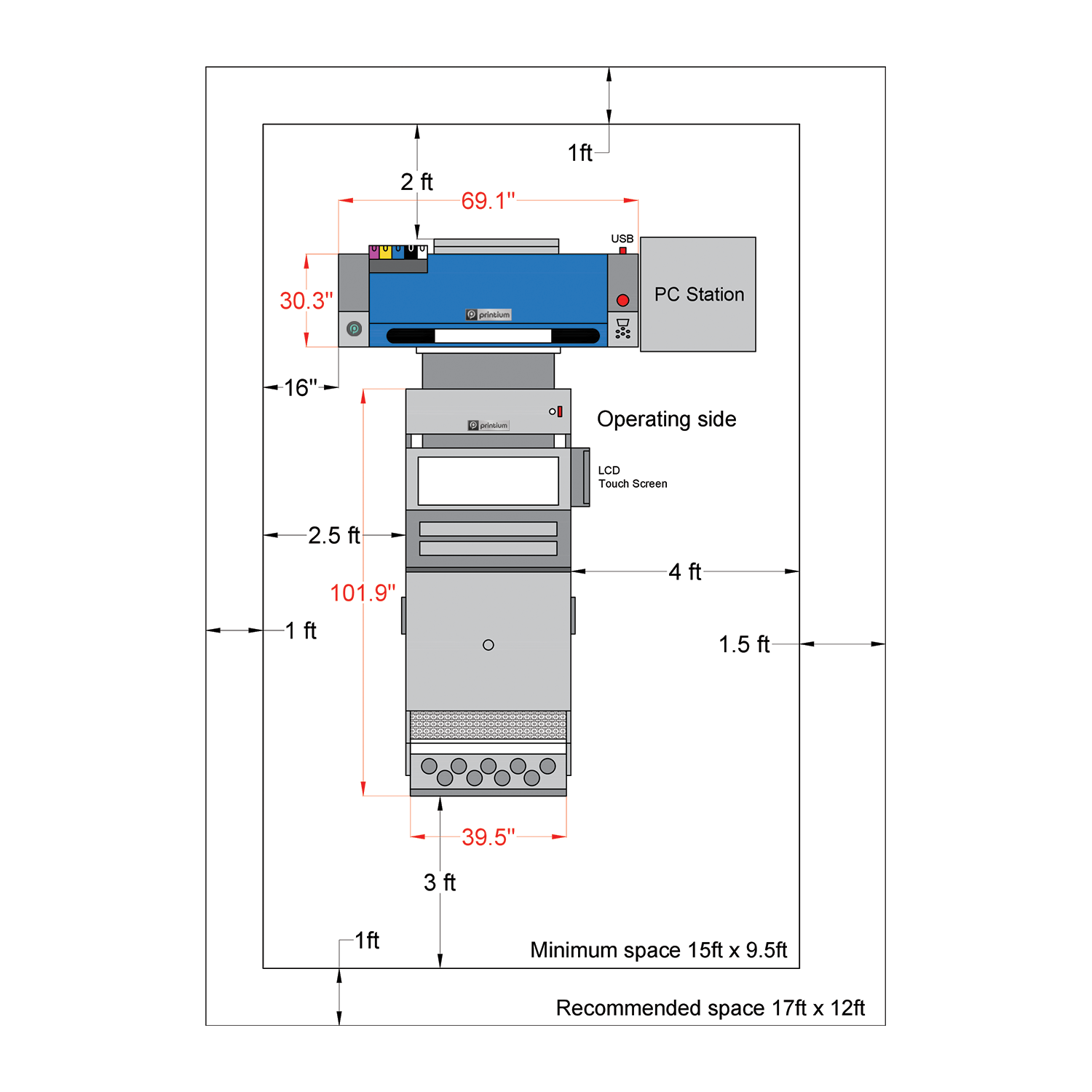

Product Dimensions: Length: 101.9 inches, Width: 39.5 inches, Height: 42.6 inches

Product Weight: 595 lbs

Package Dimensions: Length: 86.6 inches, Width: 44.5 inches, Height: 45.1 inches

Package Weight: 730 lbs

Power Requirements: Rated Voltage: 220V, Rated Current: 36A, Rated Power: 7.9 KW, Energy Consumption: 3.5 KW-7.9 KW

Usage: Connect the DTF printed films to the machine, and the automatic belt system will slide them through the shaker dryer. Use the automatic powder dispenser for even powder distribution. Set the curing temperature based on the material to ensure uniform powder application and optimal curing.

Powder Management: Use the motor-driven brush and shaker lever to control the powder and remove excess hot melt powder efficiently. This helps maintain consistent quality and prevents waste.

Heating & Drying: Ensure the quartz infrared heat drying tubes and the front heat plate are set to optimal temperatures for even curing. Monitor the drying system to maintain appropriate heat levels for the material being processed.

Cooling System: Activate the fan air cooling system after drying to cool the media and prevent warping or bulging, ensuring high-quality results.

Maintenance: Regularly clean the shaker dryer and check the powder recycling drawer for effective operation and minimized waste. Proper maintenance helps improve performance and longevity.

Power Connection: Use a 220V AC power supply, ensuring the current does not exceed 36A. The rated power is 7.9 KW, with energy consumption between 3.5 KW and 7.9 KW depending on use.
