This product is shipped in a crate weighing approximately 530 lbs. We recommend having a pallet jack available at the delivery address to safely move the heat press to its intended location for unpacking and setup.
Important Delivery Instructions for the Hydro1620 Hydraulic Heat Press
The Hydro1620 Hydraulic Heat Press must arrive securely packaged in a sealed wooden crate, unless otherwise stated or pre-arranged.
If the crate or product is visibly damaged upon delivery:
DO NOT accept the delivery immediately.
Instead, follow these steps carefully:
- Ask the delivery driver to document the damage by writing a Damage Report.
- Take clear photos of the damaged crate/product and the Damage Report.
- Do not sign the Proof of Delivery (POD) without marking the crate or product as "DAMAGED".
- Notify us immediately via phone or email.
- Complete the Order Support Request Form on our website to officially open a case. This allows us to follow up with the carrier.
⚠️ IMPORTANT: If damage is not clearly indicated on the Proof of Delivery (POD) at the time of receipt, we will not be able to file a claim with the carrier. This will result in no compensation or replacement. Your compliance with this process is essential.
Setup: Place the Pressly HYDRO1620 on a stable surface, ensuring proper power connection based on the power specifications. Before first use, fill the hydraulic system with the recommended hydraulic oil and quantity. Add at least 3 gallons of AW-46 hydraulic oil.
Temperature & Pressure Settings: Set the temperature and hydraulic pressure settings according to the material being used.

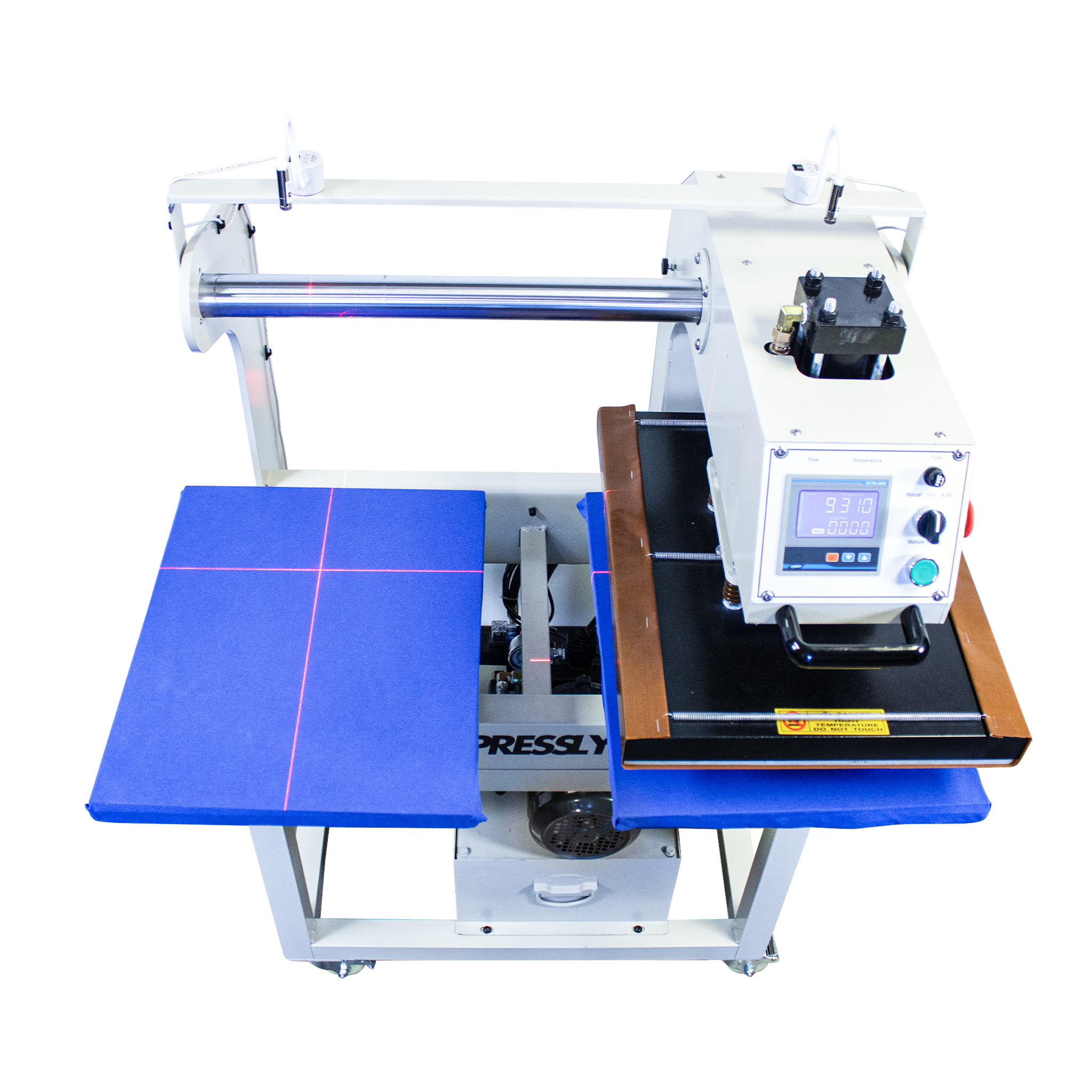

Design Alignment: Attach the magnet laser light guides to the top of the heat press to assist in precise alignment of designs.
Pressing: Place the garment or media on the platen, apply the correct pressure, and apply heat according to the required time and temperature settings.
Maintenance: Regularly check and clean the platen and hydraulic system to ensure smooth operation and prolong the life of the heat press. Check the hydraulic oil level regularly using the sight gauge located at the bottom right of your heat press. If the level is below the 50% of the glass, top it up. Be sure to change all the oil once a year, and always use the recommended AW-46 hydraulic oil for optimal performance.
