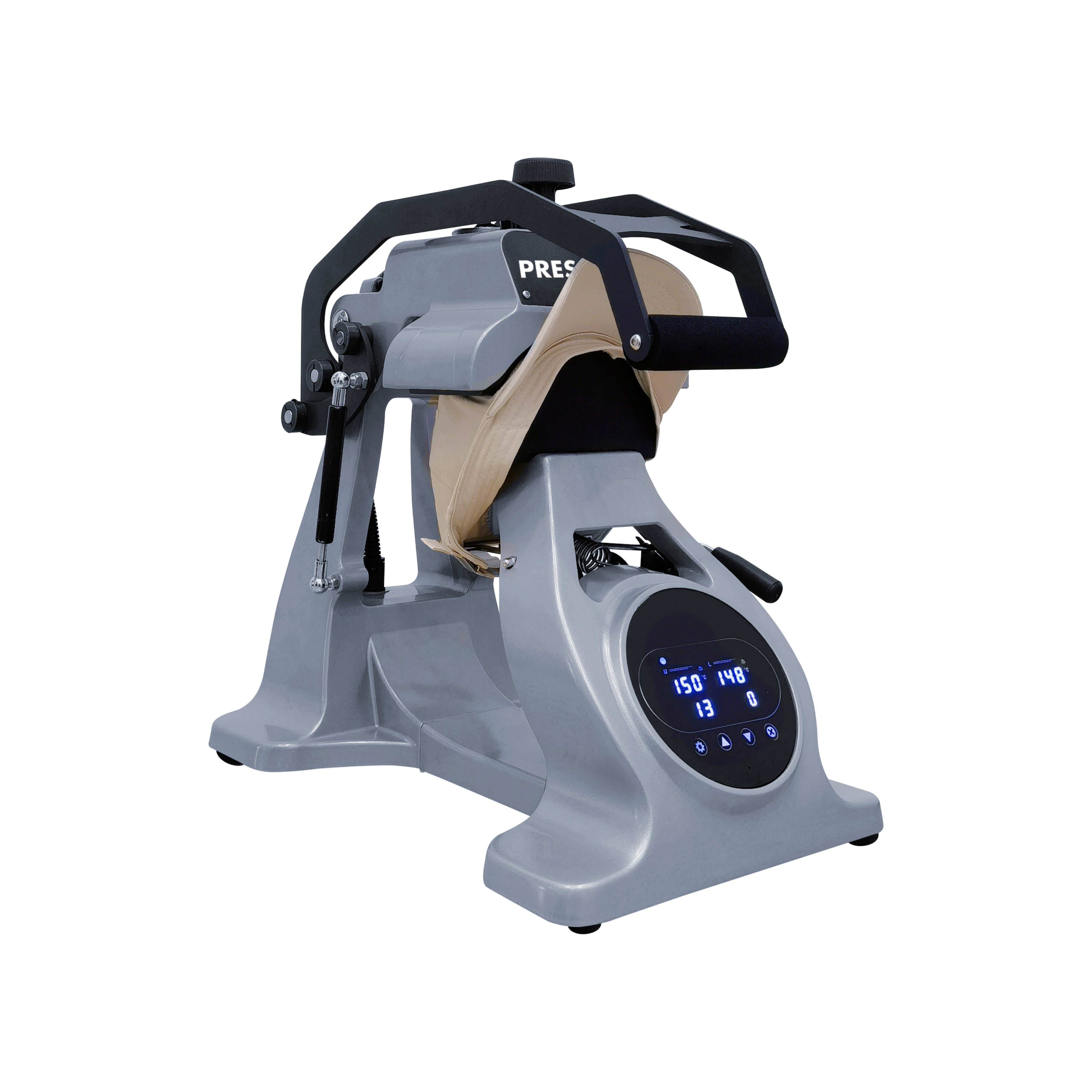

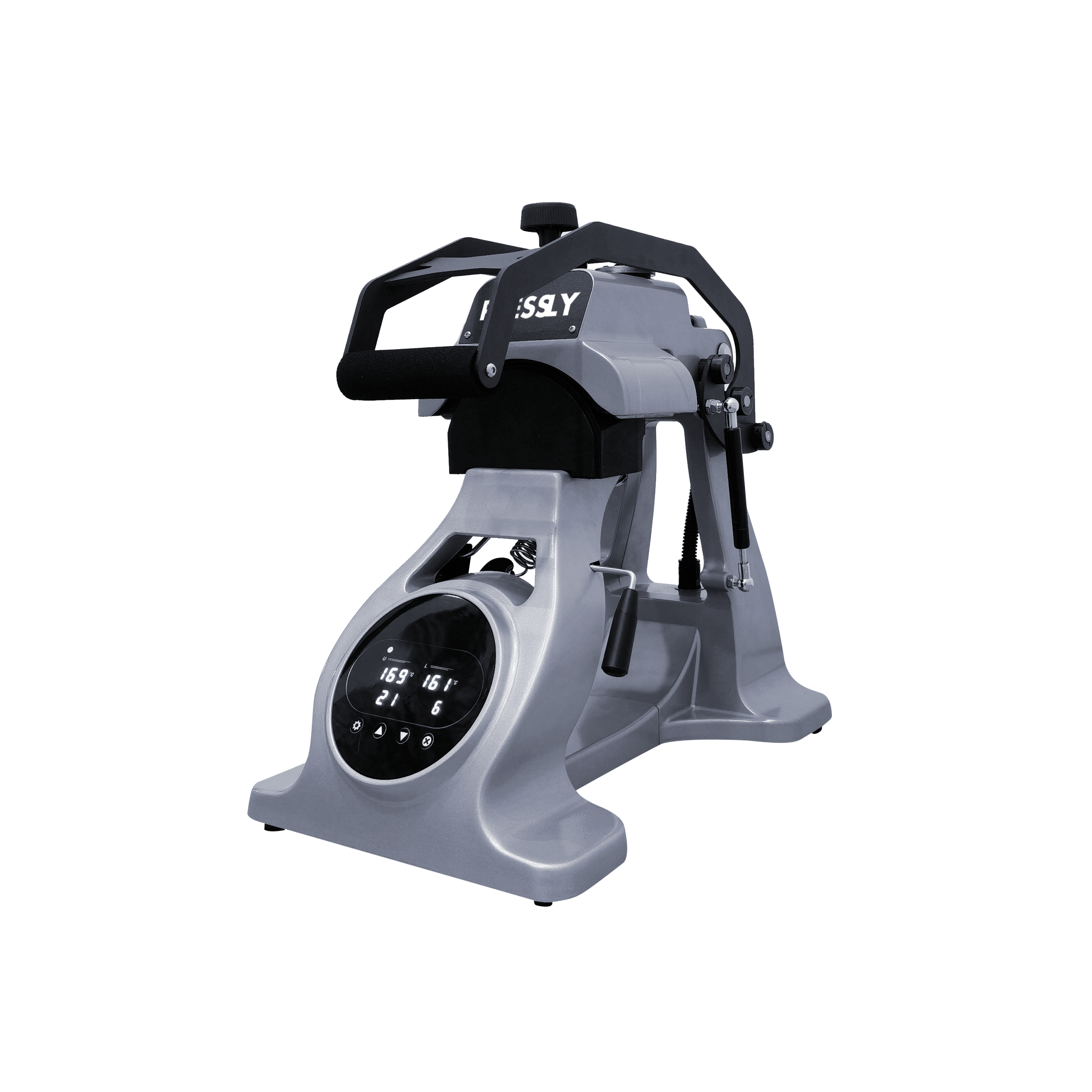

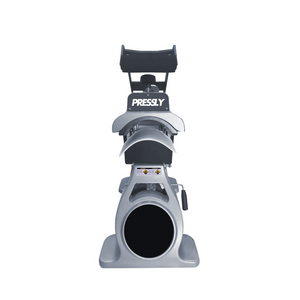

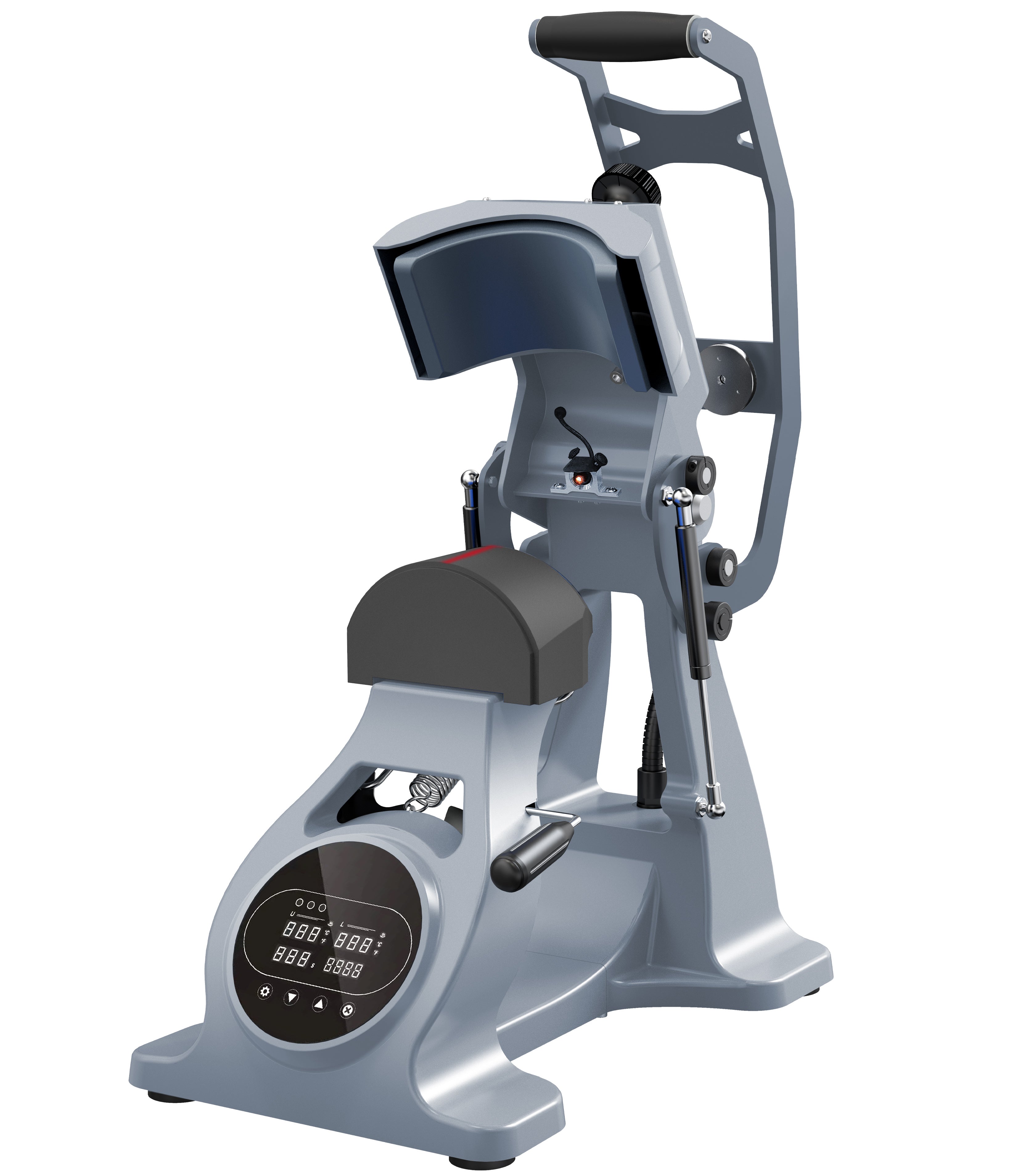

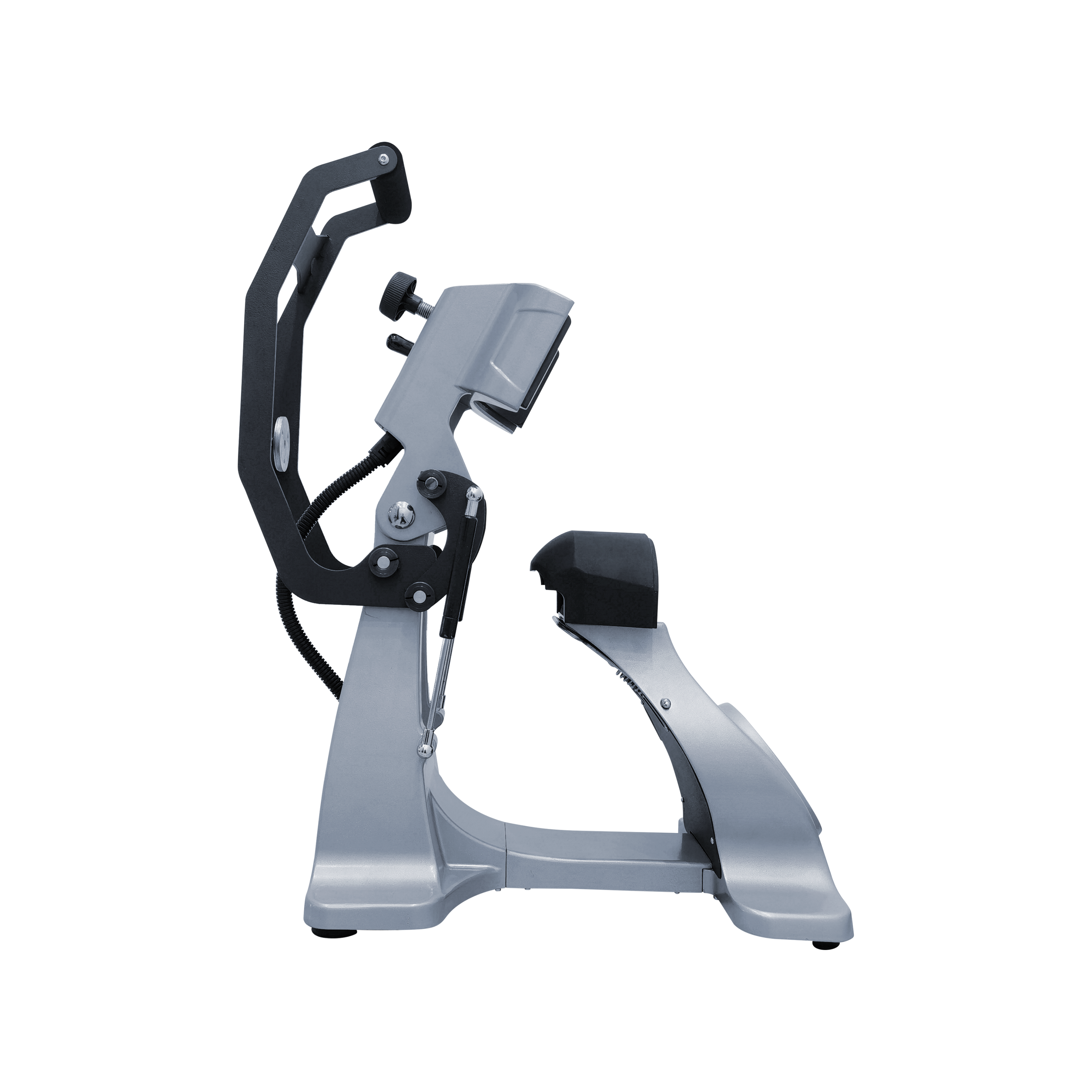

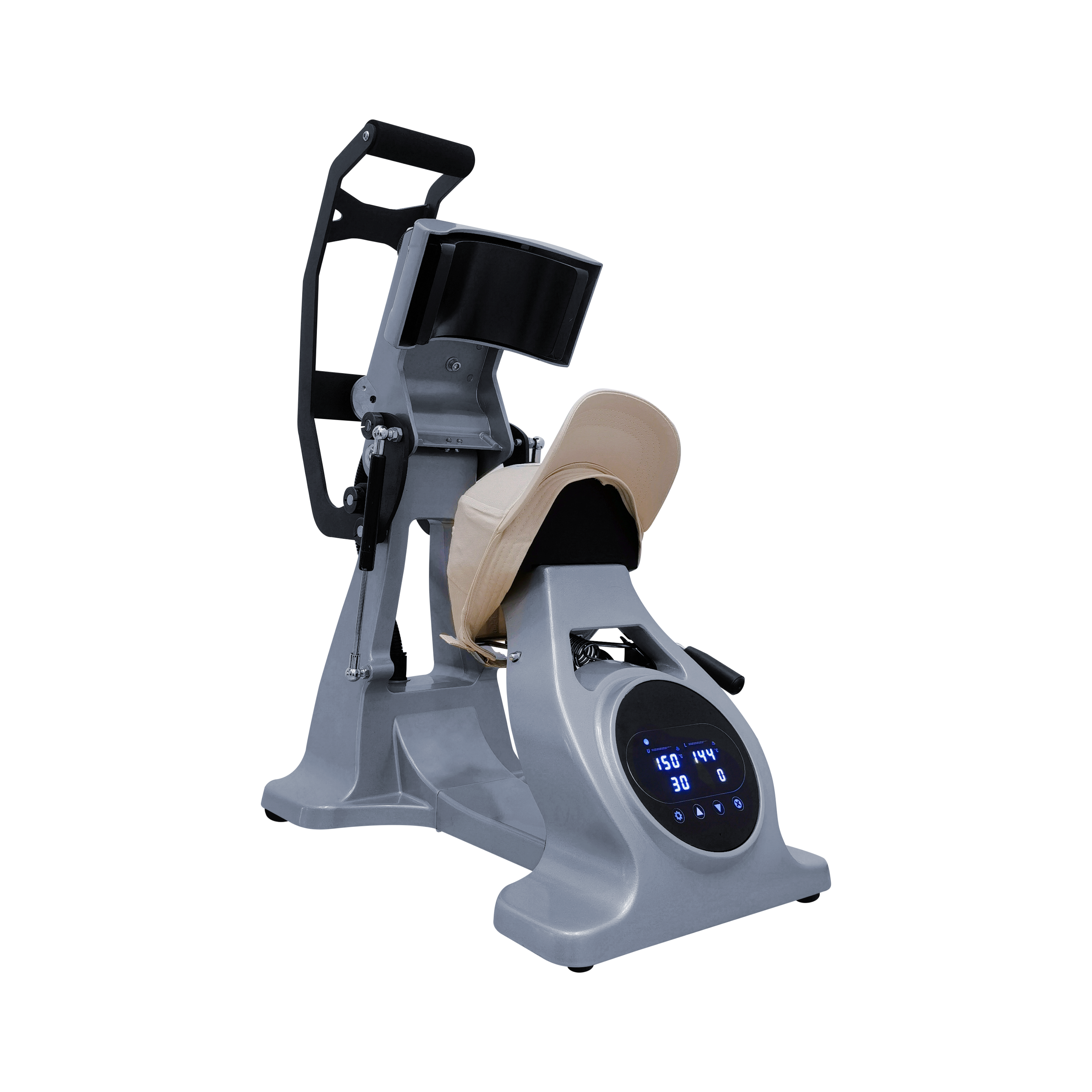

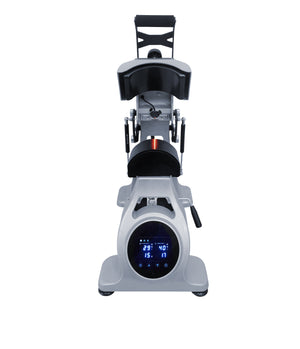

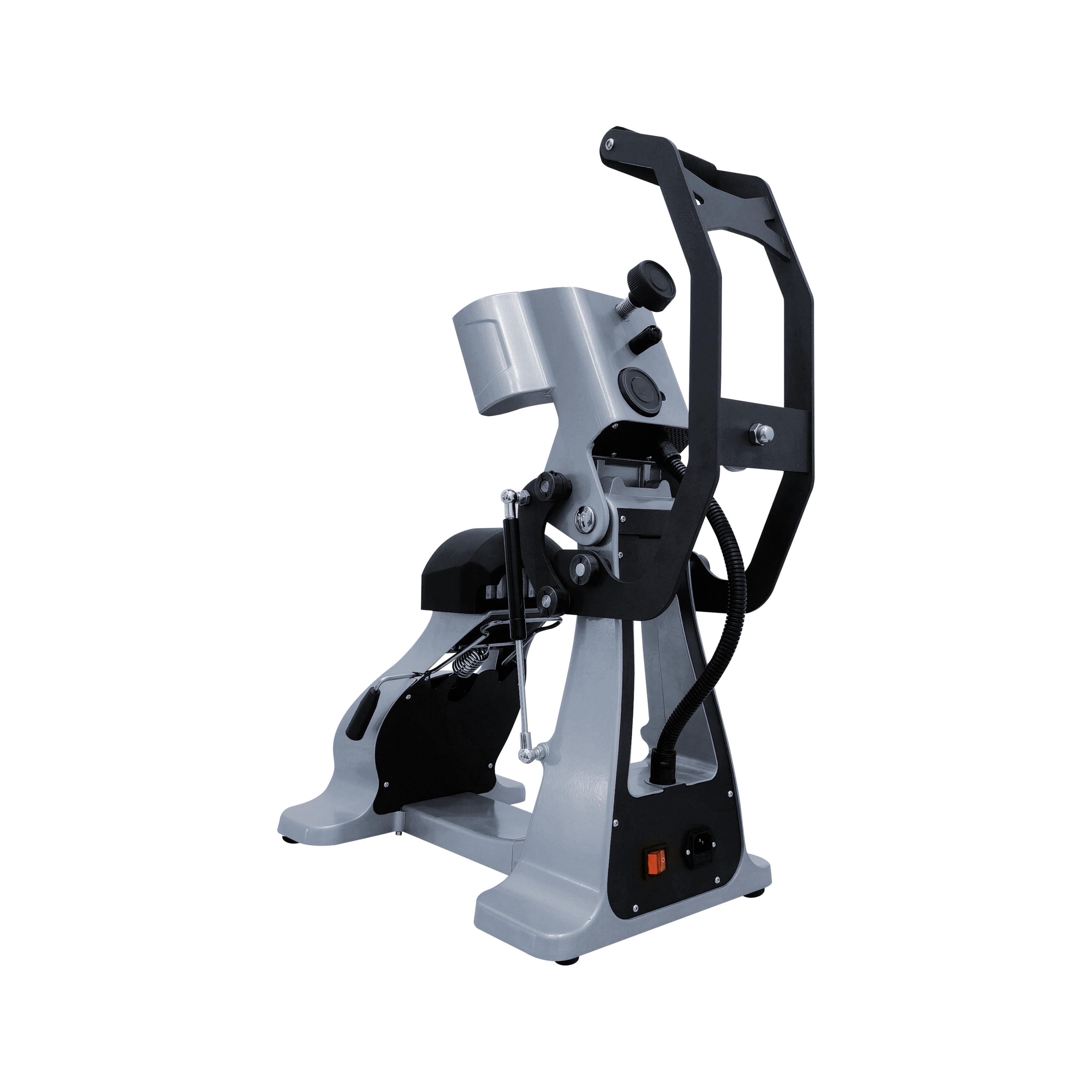

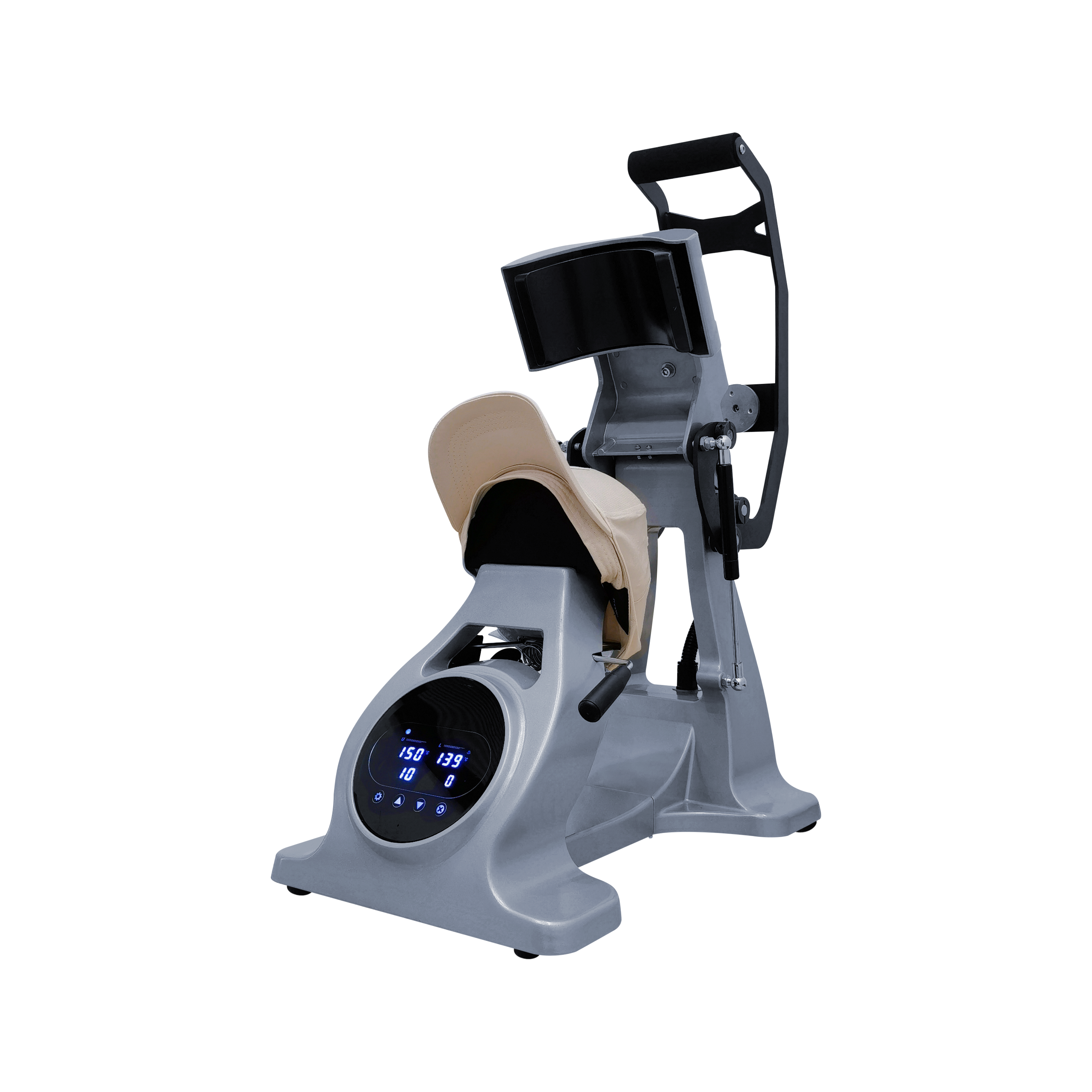

CP2815 CapPro - Dual Heat Semi-Automatic Heat Press for Caps and Hats

Model: Pressly CP2815 CapPro

Voltage: 110V/220V

Heat Plate Size: 3.7 x 7.1 inches (9.5 x 18 cm)

Attachments: Laser alignment

Power: 600W

Controller: LCD Controller

Max. Temperature: 400°F (200°C)

Temp. Accuracy: ±4°F (±2°C)

Max. Pressing Force: 550lbs (250kg)

Working Mechanism: Lever & Magnetic

Acceptable Thickness: ≤0.39 inches (1 cm)

Stand-By Feature: Max. 120 minutes

Product Dimensions (L x W x H): 23.2 x 22.4 x 14.6 inches

Product Weight: 55lbs (25 kg)

Packaging Dimensions (L x W x H): 23.8 x 23 x 15.1 inches

Package Weight: 73 lbs (33 kg)

Certifications: CE, UKCA

Note: The lower platen heats up to a range of 270–290°F and functions as a Heat Assist Platen, which supports most applications effectively. For increased heat on the lower platen, perform a press cycle and allow it to absorb additional heat from the upper platen. This method helps boost the lower platen’s temperature when needed for more demanding applications.

Read the Instruction Guide: Carefully read and understand the comprehensive instruction guide that comes with the machine for detailed setup and safety instructions.

Set Up the Machine: Place the heat press on a flat, stable surface in a well-ventilated area. Plug the machine into an appropriate power source (110V/220V). Ensure the machine is properly assembled and the platen is securely in place.

Adjust Temperature and Time: Turn on the heat press and use the LCD controller to set the desired temperature and time settings based on the material and design. Preheat the press for 5-10 minutes.

Prepare the Cap: Position your cap securely on the one-size-fits-all platen and ensure the design area is smooth and positioned properly.

Press the Hat: Close the press using the lever to apply pressure. The automatic opening feature will prevent over-application, releasing the press when the set time is up.

Post-Press Care: After pressing, carefully remove the cap or hat.

Maintenance: Clean the platen with a damp cloth after each use. Check the press regularly for wear and ensure all parts are secure.

DTF Transfers Arizona offers a limited 6-month warranty for this product, covering non-consumable parts under normal use. Consumable parts, such as printheads, printhead covers, dampers, capping stations, wiper blades, belts, bulbs, filters and, other similar wear-and-tear components are not covered under the warranty. Use of any ink, film, powder, or other supplies that DTF Transfers Arizona does not sell or distribute will void warranty coverage. Please note that the sale of this product is considered final. However, the warranty is provided to address any qualifying issues with the equipment. The warranty begins from the date of purchase. During the warranty period, DTF Transfers Arizona will provide remote technical support and, if available, repair or replacement video guidance for any issues related to parts covered under the warranty. DTF Transfers Arizona is not responsible for damages caused during shipping, but all shipments are insured. If you receive a damaged order, contact us immediately to create a ticket. We will coordinate with the shipping company to resolve the issue. Resolution or refund from the shipping company may take approximately 50–60 business days. By purchasing and using this product, you acknowledge and accept the terms and conditions outlined in this section. For warranty claims or further assistance, please contact us directly.
