Power Requirements: Rated Voltage: 220V, Rated Current: 36A, Rated Power: 7.9 KW, Energy Consumption: 3.5 KW-7.9 KW
Instructions
P604 DTF Printer:
Get Professional Help: If needed, seek professional assistance for installation to ensure proper setup.
Unpack with Caution: Be cautious during unpackaging, as the printer is heavy. It’s recommended to have at least two people for safe handling.
Follow Installation Guide: Refer to the provided installation guide and documentation from the seller or technical service for a smooth setup process.

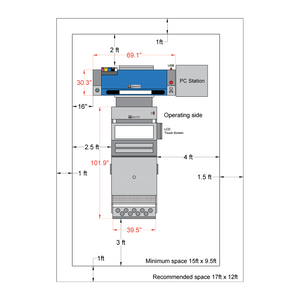

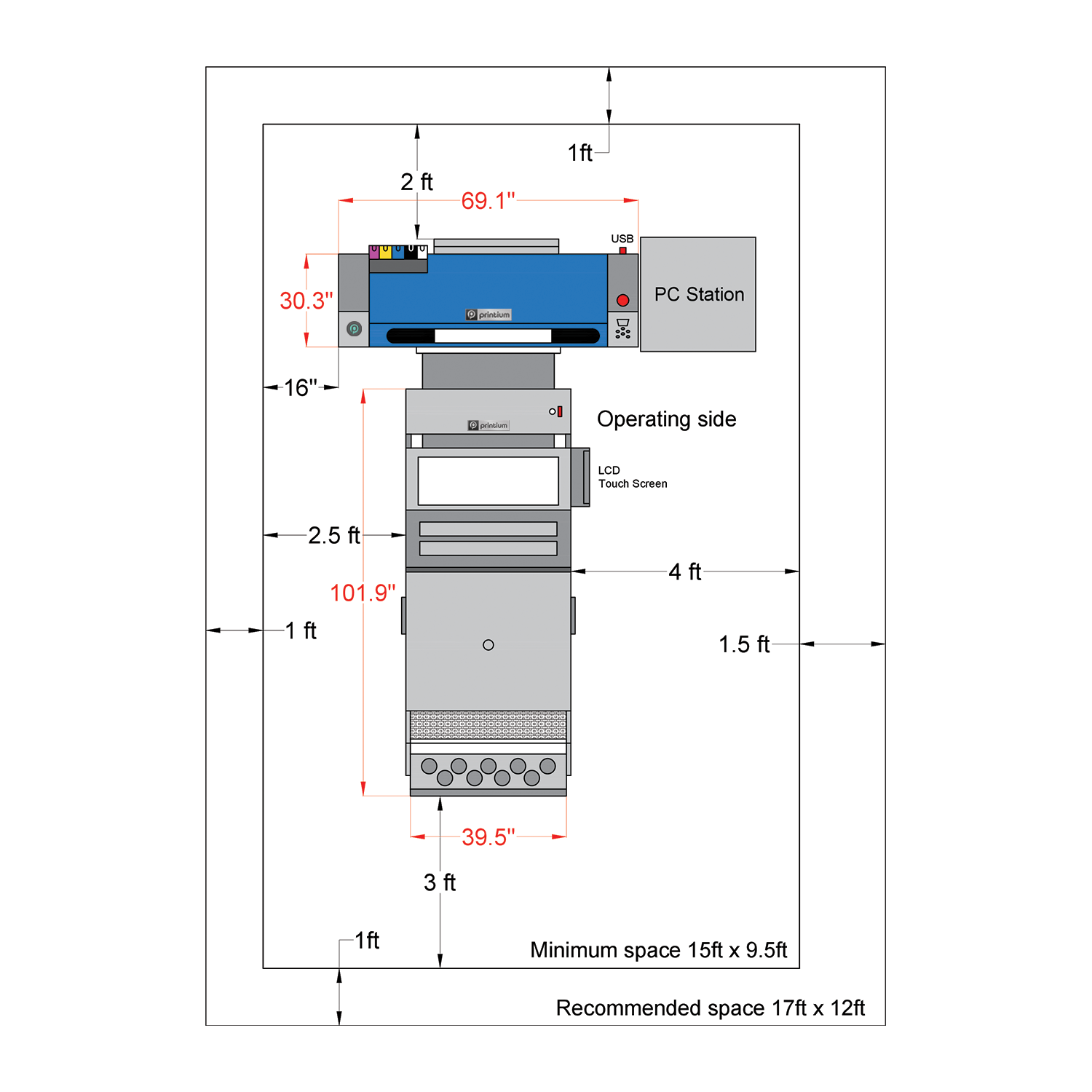

Check Operating Area: Ensure the printer is placed in an area with the correct temperature (70°F - 90°F) and humidity (45% - 65%) to maintain optimal performance. Ensure adequate ventilation to manage potential fumes.
Connect Printer and Software: Install the RIP software (Maintop or FlexiPrint) on a compatible computer and connect the printer to the system.
Load Media Correctly: Carefully load the PET film and adjust the media guides for proper alignment.
Test Print: Run a test print to ensure everything is functioning correctly before starting full production.
Regular Maintenance: Clean the printheads regularly and check ink levels to ensure smooth operation.
P6501 DTF Powder Shaker Dryer:
Usage: Connect the DTF printed films to the machine, and the automatic belt system will slide them through the shaker dryer. Use the automatic powder dispenser for even powder distribution. Set the curing temperature based on the material to ensure uniform powder application and optimal curing.
Powder Management: Use the motor-driven brush and shaker lever to control the powder and remove excess hot melt powder efficiently. This helps maintain consistent quality and prevents waste.
Heating & Drying: Ensure the quartz infrared heat drying tubes and the front heat plate are set to optimal temperatures for even curing. Monitor the drying system to maintain appropriate heat levels for the material being processed.
Cooling System: Activate the fan air cooling system after drying to cool the media and prevent warping or bulging, ensuring high-quality results.
Maintenance: Regularly clean the shaker dryer and check the powder recycling drawer for effective operation and minimized waste. Proper maintenance helps improve performance and longevity.
Power Connection: Use a 220V AC power supply, ensuring the current does not exceed 36A. The rated power is 7.9 KW, with energy consumption between 3.5 KW and 7.9 KW depending on use.
What is Included?

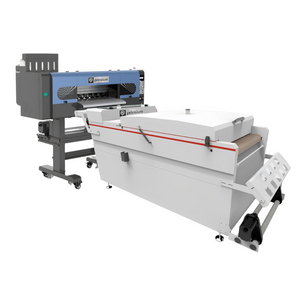

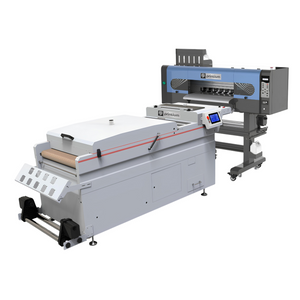

Printium P604 24" 4-Head DTF Printer
Printium P6501 - DTF Powder Shaker Dryer
RIP software for PC (Customers can select either Maintop or FlexiPrint)
6-month limited warranty
USA based support via phone or email
The following supplies will be delivered free of charge with this printer bundle:
1 roll of Instant Peel DTF Film
2 bottles of DTF White Ink, 1000 ml (33.8 fl oz) each
1 bottle each of DTF Ink – Cyan, Magenta, Yellow, and Black, 1000 ml (33.8 fl oz) per color
2 packs of DTF Hot Melt Powder, 1 kg (2.2 lb) each
1 bottle of Printhead Cleaning Solution, 100 ml (3.38 fl oz)
1 bottle of Head Care Solution, 1000 ml (33.8 fl oz)
